The Metrodata WCC-Serial provides a high performance Ethernet over Serial LAN extension function for the MC12000 chassis.

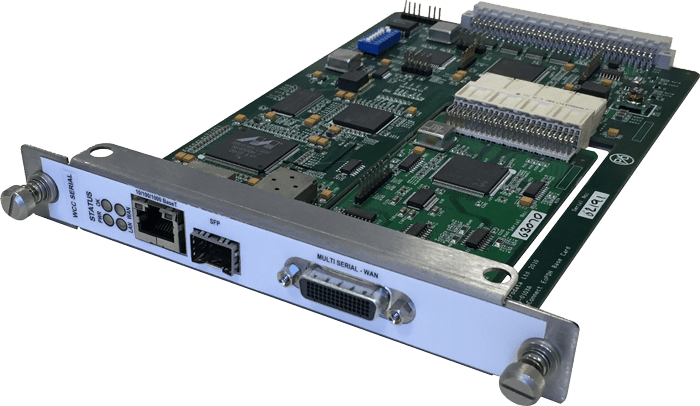

WCC-Serial MetroConnect Ethernet over Serial Module
WCC-Serial for Ethernet Demarcation Applications
WCC-Serial and WCM-Serial offering Ethernet over Serial LAN Extension at the edge of the core network
  • 10/100/1000BaseT Copper Port
  • SFP socket supporting:
    • 1000Base-X
    • 100Base-FX
  • Optional:
    • Fibre over Serial
    • Copper over Serial
    • Fibre and Copper over Serial
  • Link Loss Forwarding
  • Mini Jumbo Frame Support (2048byte)
  • 802.3ah OAM Support
  • 802.1q VLAN support (pass-through and tag switching)
  • 802.1p priority queuing (4 queues)
  • RSTP support
  • TACACS+ for secure authentication
  • “Hot Swap” IO Module
  • Store and Forward Media Conversion
  • Interoperates with WCM-Serial customer site unit

MC12000 supporting Multiple Carrier Ethernet Demarcation / LAN Extension Devices

WCC-Serial for Ethernet Demarcation Applications

This application shows how WCC-Serial modules within a MC12000 (or MetroRack) chassis can be used to perform an Ethernet over Serial LAN Extension function. Electrical connection into the core network potentially improves port density and therefore utilisation levels, but fibre connectivity is also available. The WCM-Serial is a standalone version of the WCC-Serial module offering Ethernet service demarcation at the customer site.

The WCC-Serial is an I/O module for use in the MC12000 and MetroRACK chassis systems.

The WCC-Serial occupies a single slot in the MetroCONNECT  MC12000 or MetroRACK chassis and is fully “Hot Swap” compliant to ease maintenance and the provisioning of new services.

Each Module supports Ethernet over Serial LAN Extension and Ethernet Demarcation functionality and supports Copper, Fibre or Copper and Fibre over Serial operating modes. Link Loss transparency / forwarding is supported.

Optionally, the WCC-Serial may be enabled to support OAM link management according to IEEE802.3ah. When OAM is disabled, the WCC-Serial operates in a fully transparent LAN Extension mode.

The future WCC-Serial development roadmap includes support for IEEE802.1ag and Y.1731 OAM standards.

Alternatively the WCC-Serial may be fitted into the MetroRack chassis, offering exactly the same media conversion features but without the OAM management.

The SFP port auto senses the SFP type inserted, based on the Module Definition and configures the port for 100BaseFX or 1000Base-X operation.

The WCC-Serial supports auto-negotiation, and auto MDI/MDIX cross-over switching on the copper interface.

The WCC-Serial supports the transmission of Jumbo frames.

WAN Port Specs

InterfaceCisco compatible Serial
Presentation60 way Female D Type
Line Rate15Mbps (max)
Cabling examplesUse CABX21-MT for connection to X.21 NTU
Use CABV35-MT for connection to V.35 NTU

1000Base-X Fibre Interface

Port IEEE802.3z 1000BaseX
Interface Dual LC connectors

SFP 1000Base SX

Wavelength850nm multimode
TX Power-9.5 to -3dBm
Max Rx input power0dBm
Rx sensitivity-17 to 0dBm
Optical loss budget7.5dB (550m)

SFP 1000Base LX

Wavelength1300nm singlemode
TX Power-9.5 to -3dBm
Max Rx input power-3dBm
Rx sensitivity-19 to -3dBm
Optical loss budget 9.5dB (10km)

10/100/1000BaseT Electrical Interface

Port10/100/1000BaseT with auto-negotiation
InterfaceRJ45 (Auto Crossover MDI/MDIX)
Operating modes
Auto Negotiate, 10M, 100M, 1000M, Full Duplex, Half Duplex
LEDsLink Activity, Speed

Compliance & Approvals

SafetyEN60950, IEC-60825-1 (Class 1 Laser Eye Safety)
EMCEN55022, EN50082

Environment

Temperature0 - 50 deg C
Humidity
0 - 95% RH, non condensing
Pressure86 - 100 KPa
Storage Temp-40 to 100 deg C
ProductOrder Code
WCC-Serial80-16-545

Commonly used SFP transceiversOrder CodeDescription
1Gbps Multimode 550m 850nm
80-31-011
Multimode interface
fibre optic loss budget 7.5dB
1Gbps Singlemode 10km 1300nm
80-31-031
Singlemode interface
fibre optic loss budget 9.5dB
1Gbps Singlemode 40km 1300nm
80-31-033
Singlemode interface
fibre optic loss budget 18dB
1Gbps Singlemode 80km 1550nm
80-31-042
Singlemode interface
fibre optic loss budget 20dB
100Mbps Multimode 2km 1300nm
80-30-021
Multimode interface
fibre optic loss budget 8.5dB
100Mbps Singlemode 10km 1300nm
80-30-031
Singlemode interface
fibre optic loss budget 13dB
100Mbps Singlemode 40km 1300nm
80-30-033
Singlemode interface
fibre optic loss budget 20dB
100Mbps Singlemode 80km 1550nm
80-30-042
Singlemode interface
fibre optic loss budget 29dB

Other SFPs are available on request including long haul, 1550nm, CWDM and bi-directional.

Whilst the MetroCONNECT product range uses industry standard user exchangeable SFPs, it is recommended that these are purchased from Metrodata to guarantee their specification and compatibilty with each other.

If you require another SFP please contact our sales team with your requirements.

Commonly used SFP transceivers Order Code Description
1000baseT Gigabit Ethernet 80-31-001 Copper Interface
RJ45 connector
1Gbps Multimode 550m 850nm 80-31-011 Multimode interface
fibre optic loss budget 7.5dB
1Gbps Singlemode 10km 1300nm 80-31-031 Singlemode interface
fibre optic loss budget 9.5dB
1Gbps Singlemode 40km 1300nm 80-31-033 Singlemode interface
fibre optic loss budget 18dB
1Gbps Singlemode 80km 1550nm 80-31-042 Singlemode interface
fibre optic loss budget 20dB
100Mbps Multimode 2km 1300nm 80-30-021 Multimode interface
fibre optic loss budget 8.5dB
100Mbps Singlemode 10km 1300nm 80-30-031 Singlemode interface
fibre optic loss budget 13dB
100Mbps Singlemode 40km 1300nm 80-30-033 Singlemode interface
fibre optic loss budget 20dB
100Mbps Singlemode 80km 1550nm 80-30-042 Singlemode interface
fibre optic loss budget 29dB

Other SFPs are available on request including long haul, 1550nm, CWDM and bi-directional.

Whilst the MetroCONNECT product range uses industry standard user exchangeable SFPs, it is recommended that these are purchased from Metrodata to guarantee their specification and compatibility with each other.

If you require another SFP please contact our sales team with your requirements.
