The WCM3100 Ethernet Converter provides LAN extension over E3/DS3 leased lines which can be either Clear-Channel or Framed. It offers low cost Carrier Ethernet Service delivery whilst providing end to end management using 802.3ah OAM.
- SFP Fibre Transceivers
- MetroWAVE Fibre & Copper Transceivers
- Manual v8.51
- Manual v8.50
- Manual v8.38
- Manual v8.20
10Mb/100Mb/1Gb Ethernet Converter over E3/DS3 services
- LAN extension over Clear-Channel or Fractional E3 or DS3 services
- Two RJ45 plus one SFP flexible media port, offering local Switched Ethernet connections up to 1Gbps
- Ethernet Jumbo Frame Support (2048 byte)
- Fully manageable via Serial Terminal (user-friendly context-sensitive menu system), Telnet/SSH, SNMP and Web Browser. TACACS+ for secure Management authentication
- Carrier Ethernet OAM protocol support, for Connectivity Management
- Integrated 'Bit Error Rate Testing' (BERT) for WAN link verification and troubleshooting
- 802.1q VLAN support with prioritisation based on 802.1p and/or DSCP markers
- Bandwidth control per Priority queue, for differentiated traffic QoS across the WAN
- RSTP Support
- LED status indicators
- Alarm Extension Relay
- Robust metal casing, made in the UK to high quality standards
- Integral auto-sensing power supply (100-250V AC or -48V DC versions)
- 12V & 24V DC PSU variants also available on request
- Easy to install & maintain
- Optional rack-mounting kit available
- 2-port and 4-port E3 or DS3 versions also available
MC12000 supporting Multiple Carrier Ethernet Demarcation / LAN Extension Devices

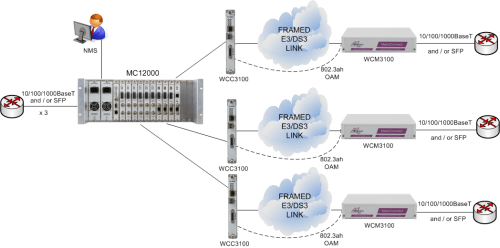

This application shows an MC12000 MetroCONNECT chassis with WCC3100 modules, supporting multiple WCM3100 Ethernet Converters over Framed E3/DS3 devices. The MetroCONNECT and WCM3100 together offer LAN Extension and Ethernet demarcation, with remote management via 802.3ah OAM. Various service delivery options are available including fibre, copper, and fibre plus copper over a Framed E3/DS3 circuit. Comprehensive remote network management access is available via the MetroCONNECT including end to end remote management using 802.3ah OAM. 10M, 100M and Gigabit Ethernet applications can all be supported, as can Mini Jumbo frames.
WCM3100 delivering Ethernet services from an MPLS core network

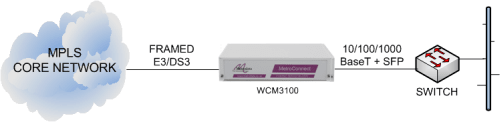

This application shows an WCM3100 unit being used as the Ethernet demarcation device to deliver a Carrier Ethernet service from an MPLS core network. A wide choice of Ethernet connectivity is available for the user via the 10/100/1000baseT and SFP fibre ports. OAM support means that the WCM3100 can be remotely managed by the central network management system using standards based OAM packets. GFP is supported allowing single ended use with aggregation platforms in the core network.
WCM3100 units performing Ethernet service demarcation and media conversion
This application shows how a pair of WCM3100 units can be used to offer Ethernet service demarcation and LAN Extension functionality over a Framed E3 or DS3 circuit.
The WCM3100 is a member of the MetroCONNECT family, offering Managed LAN extension over either Clear-Channel or Fractional E3 or DS3 Wide Area Networks.The WCM3100 supports two RJ45 LAN interfaces.A further LAN interface is provided via an SFP port, offering the flexibility of an RJ45 or a wide variety of fibre interface options. Over-sized Ethernet frames, of up to 2048 bytes, are supported.
Ethernet VLANs are supported, either by pass-through of existing Tags or by the Push and Pop of Tags on ingress and egress at Ethernet ports. Pre-embedded prioritisation schemes can be honoured, or alternatively prioritisation can be over- written under Management control. Bandwidth limitation per port and per prioritisation can be implemented, providing a mechanism for differentiated QoS for multiple services. Management is offered via each of; Serial Terminal connection,Telnet, SNMP or Web Browser application. Management security is offered via SSH and TACACS+ authentication. Support is also offered for ‘Carrier Ethernet’ Link OAM Management (IEEE802.3ah), enabling status information to be shared with connected equipment if required.
In line with all other members of the MetroCONNECT Ethernet Service Delivery family,theWCM3100 supports Metrodata’s ‘zero-touch’ installation process, eliminating the need for skilled resources for remote-site installations.
The WCM3100 supports integrated ‘Bit Error Rate Testing’ (BERT), an invaluable aid during both installation and subsequent troubleshooting. This facility enables integrity testing of the WAN link, prior to application of Ethernet traffic, eliminating doubt as to the location of connectivity problems.
Ethernet traffic is encapsulated by the WCM3100, for transmission over an E3 or DS3 link, using a number of optional schema, including support for the ITU-T G.8040 standard ‘Generic Framing Procedure’ (GFP).The product can be used for both simple Point-to-Point networks, using two WCM3100 products linked via either terrestrial or wireless (e.g. microwave) WAN services, or as part of a Point-to-MultiPoint topology, using the MetroCONNECT WCM3200 and 3400 products, the MC12000 Ethernet Service Delivery Chassis, or third-party aggregation platforms.
The WCM3100 is available in a choice of 100-250 VAC or -48 VDC integrated power supplies.
The WCM3100 is part of a wide range of LAN extension products from Metrodata.
WAN Port Specs
|Port||Framed E3/DS3 conforming to G.703|
|Interface||BNC pair (75 ohm)|
|Framing|| E3: G.832 or unframed |
DS3: C-bit parity or unframed
|Line Coding|| E3: HDB3 |
|Bit Rate|| E3: 34.368Mbps +/- 20 ppm|
DS3: 44.736Mbps +/- 20ppm
1000Base-X Fibre Interface
|Interface||Dual LC connectors|
SFP 1000Base SX
|TX Power||-9.5 to -3dBm|
|Max Rx input power||0dBm|
|Rx sensitivity||-17 to 0dBm|
|Optical loss budget||7.5dB (550m)|
SFP 1000Base LX
|TX Power||-9.5 to -3dBm|
|Max Rx input power||-3dBm|
|Rx sensitivity||-19 to -3dBm|
|Optical loss budget||9.5dB (10km)|
10/100/1000BaseT Electrical Interface
|Port||2x 10/100/1000BaseT with auto-negotiation and Jumbo frame support|
|Interface||RJ45 (Auto Crossover MDI/MDIX)|
|Operating mode||Auto Negotiate, 10M, 100M, 1000M, Full Duplex, Half Duplex|
|LEDs||Link, Activity, Speed|
Compliance & Approvals
|IEC60825-1 Class 1 Laser Eye Safety|
|Temperature||0 - 50 deg C|
|0 - 95% RH, non condensing|
|Storage Temp||-40 to 100 deg C|
|Pressure||86 - 106 kPa|
Power Supply Options
|-48 VDC||-40 to -72V DC, 125 - 65 mA|
|AC Mains||100 - 250V AC, 50 - 60Hz, 60 - 25mA|
|Power Consumption||6 watts approx when operating|
|Type||Modem, 1U high without feet|
Dimensions W x D x H (mm)
|Rack mount||202 x 132 x 44 (without feet)|
|Tabletop||202 x 132 x 48 (with feet)|
|Product||AC Mains: 100 - 250 VAC||DC Power: -48 VDC|
|2 unit rack mount kit||80-05-256||80-05-256|
|18 unit rack mount kit||80-05-250||80-05-255|
Product variants with 12V to 24V DC operation are also available on request.
If you require further information please contact our sales team with your requirements.
|Commonly used SFP transceivers||Order Code||Description|
|1000baseT Gigabit Ethernet||80-31-001|| Copper Interface |
|1Gbps Multimode 550m 850nm||80-31-011|| Multimode interface |
fibre optic loss budget 7.5dB
|1Gbps Singlemode 10km 1300nm||80-31-031|| Singlemode interface |
fibre optic loss budget 9.5dB
|1Gbps Singlemode 40km 1300nm||80-31-033|| Singlemode interface |
fibre optic loss budget 18dB
|1Gbps Singlemode 80km 1550nm||80-31-042|| Singlemode interface |
fibre optic loss budget 20dB
|100Mbps Multimode 2km 1300nm||80-30-021|| Multimode interface |
fibre optic loss budget 8.5dB
|100Mbps Singlemode 10km 1300nm||80-30-031|| Singlemode interface |
fibre optic loss budget 13dB
|100Mbps Singlemode 40km 1300nm||80-30-033|| Singlemode interface |
fibre optic loss budget 20dB
|100Mbps Singlemode 80km 1550nm||80-30-042|| Singlemode interface |
fibre optic loss budget 29dB
Other SFPs are available on request including long haul, 1550nm, CWDM and bi-directional.
Whilst the MetroCONNECT product range uses industry standard user exchangeable SFPs, it is recommended that these are purchased from Metrodata to guarantee their specification and compatibility with each other.
If you require another SFP please Contact our Sales Team contact our sales team with your requirements.
