Metrodata's BC1x00 family of Baseband Converters allow the latest generation of Serial Link and Bulk Encryption Devices using the LVDS/EIA-644 interface to be connected to satcoms equipment, routers and radio systems.

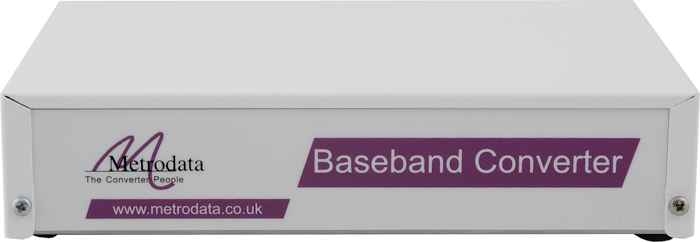

Front: Baseband Converter Rear: BC1000 - KIV 7 to HSSI Satellite modem on the encypted Black side Rear: BC1100 - HSSI to KIV-7 LVDS/EIA-644 port

BC1x00 Baseband Converters for LVDS to HSSI Conversion

Baseband Converter - LVDS Encryptor Interfacing

  • HSSI to LVDS (EIA-644-A) interface conversion
  • Transparent operation at up to 52 Mbps
  • DCE or DTE options
  • Configurable control signal mapping
  • Easy to install & maintain
  • Integral auto-sensing power supply (100-250V AC or -40V DC versions)
  • 12-24V DC power supply available on request
  • Compact modem style unit, built to European standards
  • Rack mounting kits for 2 or 18 units available

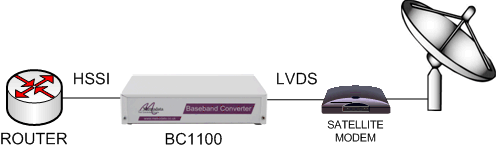

BC1100 used to connect a HSSI router to an LVDS satellite modem

BC1100 used to connect a HSSI router to an LVDS satellite modem

The BC1100 converts between the HSSI router interface and the LVDS satellite modem. The BC1100 operates transparently to the data and can operate at up to 52Mbps which is the maximum operating speed of HSSI router ports and LVDS satellite modems.

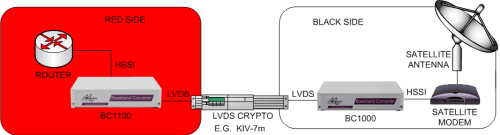

BC1000 and BC1100 products used to interface an LVDS encrypter with a HSSI router and a HSSI satellite modem

Baseband Converter - LVDS Encryptor Interfacing

On the un-encrypted Red side, the BC1100 enables the connection of the HSSI router port to the KIV-7 LVDS/EIA-644 port, whilst the BC1000 enables the KIV-7 to be connected to a standard HSSI satellite modem on the encrypted Black side. The same topology can also be used for radio relay systems.

Using Metrodata's Baseband Converters, it is possible to utilize new and existing/legacy equipment with these new fast LVDS link encryptors. Typically used to interface Cisco HSSI Routers to LVDS encryptors, or LVDS encryptors to HSSI satellite Modems or HSSI radio relay systems, the BC1x00 baseband converter family presents a major step in solving interoperability and interfacing issues within Defence networking.

The product range consists of two devices: the BC1100 which connects LVDS/EIA-644 equipment to a HSSI DTE (e.g. a router), and the BC1000 which connects LVDS/EIA-644 equipment to a HSSI DCE (e.g. a satellite modem). With a maximum speed of 51.84Mb/s the BC1x00 Baseband Converters support the maximum rate supported by LVDS encryptors.

Cables to connect the BC1000 and BC1100 to a KIV-7M link encryptor are also available.

LVDS/EIA-644 Up to 52Mbps
Presentation25-way D Type, DCE female (BC1000), DTE male (BC1100)
Operating speedUp to 52Mbps
SignalsSD, ST, TT, RD, RTS, CTS, DCD, DSR, DTR

HSSI Port
Presentation50-way AMP (SCSI-2), DCE (BC1100), DTE (BC1000)
Operating speedUp to 52Mbps
SignalsSD, ST, TT, RD, RT, CA, TA, LA, LB, LC, TM

Compliance & Approvals
SafetyEN60950
EMCEN55022, EN50082

Power Supply
-48 VDC Supply-40 to -72 VDC, 165 - 95 mA
AC Mains100 - 250 VAC, 50 - 400Hz, 65 - 28 mA, IEC Connector
Power Consumption6.5 watts approx when operating

Environment
Storage Temp-20 to +70 deg C
Operating Temp0 - 50 deg C
Humidity 0 - 95%, no-condensing
Pressure 86 - 106 KPa

Packaging
TypeModem, 1U without feet, IP30C

Dimensions ( W x D x H mm )
Rack mount202 x 132 x 44 (without feet)
Tabletop202 x 132 x 48 (with feet)
Part Number
Product AC Mains: 100 - 250VAC DC Power: -48 VDC
80-05-556 80-21-556
BC1100 HSSI DCE to LVDS DTE80-05-55780-21-557
1U 2 unit rack mount kit80-05-25680-05-256
6U 18 unit rack mount kit 80-05-25080-05-255
BC1100 to KIV-7M cable (red side) 80-415-0017 (1.5m)80-43-0017 (3m)
BC1000 to KIV-7M cable (black side) 80-415-0018 (1.5m)80-43-0018 (3m)

Product variants with 12V to 24V DC operation are also available on request.
