The DC3200 provides a new level of price and performance in connecting switches and routers to an unstructured or structured E1 G.703/G.704 2.048Mbps leased line.

The DC3200 provides the conversion necessary to connect the V.35 serial interface of a router to a 2Mbps leased line.

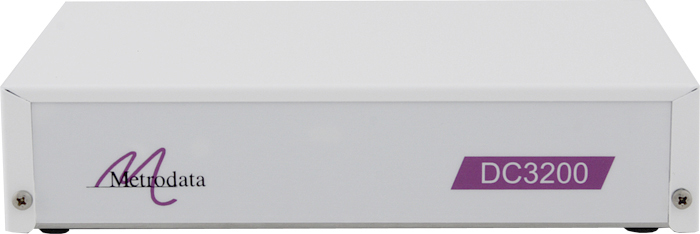

Front: DC3200DC3200 AC rear

Voir en français

Fractional E1 (Nx64kbps) G.703/G.704 to V.35 Converter

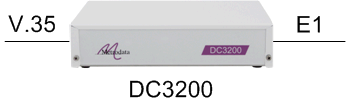

DC3200 as an E1 G703/G704 to Nx64kbps V35 converter
DC3200 as an E1 G.703/G.704 to Nx64kbps V.35 converter
  • Cost Effective E1 G.703/G.704 2.048Mbps interface conversion
  • V.35 DCE port for router connection
  • Fractional Nx64kbps support
  • E1 2Mbps G.703 port for leased line connection
  • Easy to install & maintain
  • Integral auto-sensing power supply (100-250V AC or -40V DC versions)
  • 12-24V DC power supply available on request
  • External alarm relay port
  • Compact modem style unit, built to European standards
  • Rack mounting kits for 2 or 18 units available
  • Quad option available with 4 DC3200 units in a 1U box
  • Can sometimes be used in reverse connecting an E1 device such as a router to a V.35 service
  • Can sometimes be used to connect E1 devices to V.35 satellite modems

Router Applications

PBX Applications

Satellite Applications

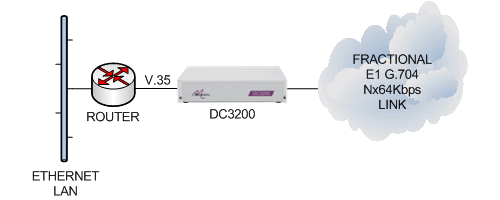

DC3200 connecting a V.35 router to an unframed or framed E1 G.703/G.704 leased line


This application shows a DC3200 connecting a V.35 router card to an E1 G.703 2.048Mbps leased line, such as a BT Megastream-2 service. V.35 serial ports are often the most cost effective WAN port available on routers. Most Telecom carriers provision E1 2.048Mbps services with G.703 connectivity. Care must be taken to ensure that the remote equipment is configured in a compatible manner (i.e. both ends unframed or both ends framed). If the leased line is framed then the equipment at both ends of the leased line must also be framed.

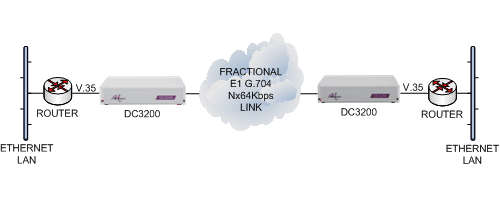

V.35 routers connected together via an unframed or framed E1 G.703 leased line using DC3200 units


This application shows a pair of DC3200 units connecting a pair of V.35 routers via an E1 G.703 2.048Mbps leased line, such as a BT Megastream-2 service. V.35 serial ports are often the most cost effective WAN port available on routers. Most Telecom carriers provision E1 2.048Mbps services with G.703 connectivity.Care must be taken to ensure that the remote equipment is configured in a compatible manner (i.e. both ends unframed or both ends framed). If the leased line is framed then the equipment at both ends of the leased line must also be framed.

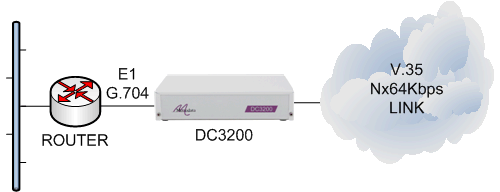

DC3200 connecting an E1 G.704 router to a V.35 Nx64kbps leased line


This application shows a DC3200 connecting an E1 G.704 router card to a V.35 Nx64kbps leased line, such as a BT Kilostream-N service. Care must be taken to ensure that the remote equipment is configured in a compatible manner (i.e. either V.35 or E1 G.704 framed). This application requires a V.35 DCE to V.35 DCE crossover cable. Please note that this application will NOT work where E1 timeslot integrity is required (e.g. when using channelised E1 cards in the routers).

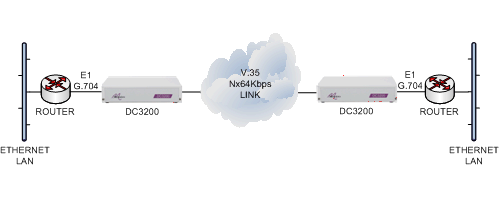

E1 routers connected together over an V.35 Nx64kbps leased line using DC3200 units


This application shows a pair of DC3200 units connecting a pair of E1 G.704 routers via an V.35 Nx64kbps leased line, such as a BT Kilostream-N service. Care must be taken to ensure that the remote equipment is configured in a compatible manner (i.e. either V.35 or E1 G.704 framed). This application requires the use of V.35 DCE to V.35 DCE crossover cables. Please note that this application will NOT work where E1 timeslot integrity is required (e.g. when using channelised E1 cards in the routers).

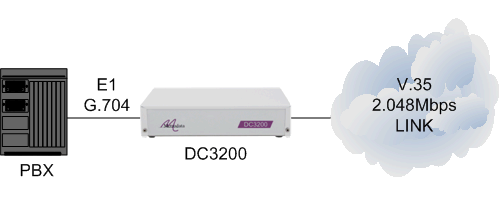

DC3200 connecting a PBX to a 2.048Mbps V.35 leased line


This applications show a DC3200 being used to connect a PBX PRI port to a 2.048Mbps V.35 leased line, for when either an existing X.21 leased line is available for re-use or alternatively when V.35 connectivity has been provided rather than G.703 (e.g. for economic reasons). This application requires a V.35 DCE to V.35 DCE crossover cable. Please note that this application will NOT work over an Nx64kbps service, e.g. a BT Kilostream-N.

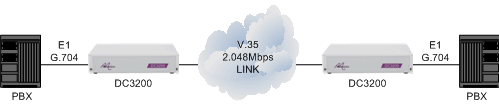

PBXs connected together via a 2.048Mbps V.35 leased line using DC3200 units


This applications shows how a pair of PBX systems can be connected together via a 2.048Mbps leased line using a pair of DC3200 units. This would occur either when an existing V.35 leased line is available for re-use, or alternatively when V.35 connectivity has been provided rather than G.703 (e.g. for economic reasons). This application requires the use of V.35 DCE to V.35 DCE crossover cables. Please note that this application will NOT work over an Nx64kbps service, e.g. a BT Kilostream-N.

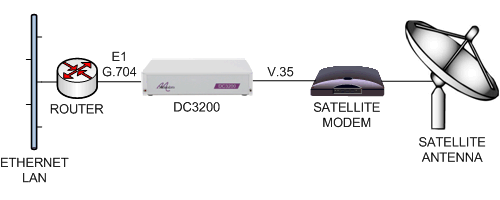

Connecting E1 routers to V.35 satellite modems


This application shows a DC3200 connecting an E1 G.703 router card to a V.35 satellite modem. The DC3200 supports a number of different clocking modes, and so it is possible to source the clocking for this network from the satellite modems, from one of the terrestrial circuits or from a DC3200 or router. This application requires a V.35 DCE to V.35 DCE crossover cable. Please note that this application will NOT work where E1 timeslot integrity is required (e.g. when using channelised E1 cards in the routers, or when using a PBX).

The DC3200 offers conversion between a V.35 serial interface and an E1 line interface with BNC or RJ45 connector options. The DC3200 supports both unframed and framed (or fractional) operation.

Fractional operation allows a number of 64kbps timeslots to be active, up to a maximum of 31 timeslots for a single E1 line. If timeslot 16 is bypassed, then a maximum of 30 timeslots (channels) can be accommodated.

The DC3200 has a simple multi-function status LED and BIT switch configuration with comprehensive configuration and diagnostic information on the unit base label making the DC3200 a truly plug and play device.

The DC3200 range can easily be rack mounted in either a 1U two unit rack mount kit, a 6U eighteen unit rack mount kit or also available in quad box option (4 x DC3200 units).

E1 Line Interface
Port G.703, 75ohm unbalanced, 120 ohm balanced
Interface BNC (75ohm), RJ45 (120ohm)
Framing G.704 (with or without CR4) or unframed
Line Coding HDB3
Bit Rate 2.048Mbps +/- 50ppm
Barrier Fully compliant as per EN41003
Cable Lengths BNC: RG59 = 600m, UR202 = 750m
RJ45: Belden 8132 = 175m, Belden 9841 = 300m

DTE Interface
Port V.35
Interface ISO2593 34-way female M-Rack
Bit Rate 2.048Mbps or Nx64kbps (N = 1 to 31)

Configuration
Clocks Internal, E1 Loop, Terminal, DTE Mode, set by dip switches
Set up Start Timeslot: 1 to 31
End Timeslot: 1 to 31
CRC4: Enable / Disable
Timeslot 16 bypass: Enable / Disable

Status Display
Type Status LED on rear panel
Off Mains power off
Red Loss of Signal (LOS)
Green Unit OK

Compliance & Approvals
Performance PD7024 (NTR4)
Safety EN41003, EN60950
EMC EN55022, EN50082

Environment
Temp 0 - 50 deg C
Humidity 95% RH, non-condensing
Pressure 86 - 106 kPa

Power Supply
AC Mains 100 - 250VAC, 50 - 60Hz, 35 - 15mA, IEC Connector
-48 VDC -40 to -72VDC, 100 - 50mA

Packaging
Type Modem, 1U high without feet, IP30C

Dimensions ( W x D x H mm )
Rack mount 202 x 132 x 44 (without feet)
Desktop 202 x 132 x 47 (with feet)
Order Code
Product
AC Mains: 100 - 250 VAC DC Power: -48 VDC
80-05-232 80-21-232
2 unit rack mount kit 80-05-256 80-05-256
18 unit rack mount kit 80-05-250 80-05-255
Quad DC3200 80-405-232 80-421-232

Product variants with 12V to 24V DC operation are also available on request.
