The Metrodata FC1200 product provides a high performance solution for extending and interconnecting voice and data communication infrastructures using singlemode fibre optic cabling. Both North American T1 standards and European E1 standards are supported.
This is an alternative product for the Probot 3005 E1 Fibre Modem.
E1/T1 G.703 to 70km Singlemode Fibre Converter
- Low cost voice or data trunk extension or trunk connection over fibre
- DPNSS, Primary Rate ISDN-30 DASS and ISDN30e QSIG PBX trunk protocols supported
- Unchannelised and Fractional E1 router data also supported
- North American T1 standards also supported, either T1 routers or T1 PBX ports
- Payload, voice and data protocols and PBX signalling get passed through transparently
- Must be used in pairs
- E1 or T1 selection via a switch
- BNC and RJ45 switch selectable E1 connections
- Minimal configuration of unit needed
- Easy to install & maintain
- Integral auto-sensing power supply (100-250V AC or -40V DC versions)
- 12-24V DC power supply available on request
- External alarm relay port
- Compact modem style unit, built to European standards
- Rack mounting kits for 2 or 18 units available
- Quad option available with 4 FC1200 units in a 1U box
- Alternate product for Probot 3005
- FC1X00 family - T1 1.544Mbps (or E1 2Mbps G.703) over fibre
- FC1000 : T1 1.544Mbps (or E1 2Mbps G.703) over 5km multimode fibre
- FC1100 : T1 1.544Mbps (or E1 2Mbps G.703) over 30km singlemode fibre
- Connecting two PBX systems together using singlemode fibre
- PBX to NTE extension over singlemode fibre
- Connecting E1/T1 routers together using singlemode fibre
- E1/T1 router to NTE extension over singlemode fibre
This application shows a pair of PBX systems connected over a singlemode fibre using a pair of FC1200 units. This singlemode fibre could be across a city, or between cities (e.g. over a rented fibre).

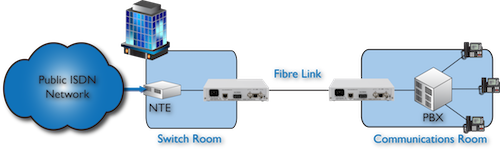

This application shows a PBX being remotely connected to an NTE over a singlemode fibre using a pair of FC1200 units. This singlemode fibre could be across a city, or between cities (e.g. over a rented fibre).

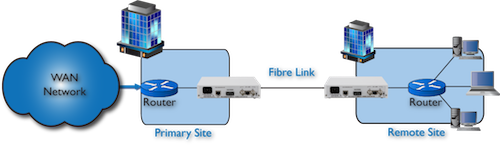

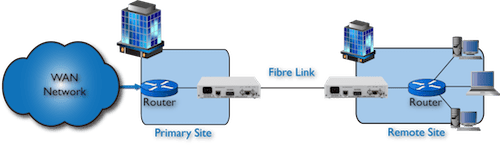

This application shows a pair of routers connected over a singlemode fibre using a pair of FC1200 units. This singlemode fibre could be across a city, or between cities (e.g. over a rented fibre).

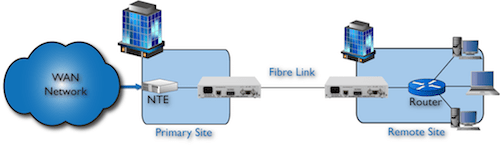

This application shows an E1 router being remotely connected to an NTE over a singlemode fibre using a pair of FC1200 units. This singlemode fibre could be across a city, or between cities (e.g. over a rented fibre).

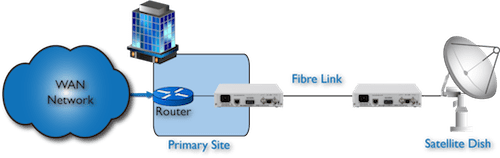

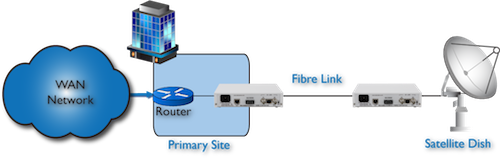

This application shows an E1 router being remotely connected to an E1 G.703 satellite modem over a singlemode fibre using a pair of FC1200 units. This singlemode fibre could be across a city, or between cities (e.g. over a rented fibre).
With the need to extend, or interconnect, communication infrastructures over greater distances, and the cost of fibre falling dramatically, the Metrodata FC1X00 Fibre Converter product range provides a cost effective solution for the extension of E1 (2.048Mbps) or T1 (1.544Mbps) services.
There are three models in the range:
- FC1000 T1 1.544Mbps (or E1 2Mbps G.703) over multimode fibre (up to 5km)
- FC1100 T1 1.544Mbps (or E1 2Mbps G.703) over singlemode short haul fibre (up to 30km)
- FC1200 T1 1.544Mbps (or E1 2Mbps G.703) over singlemode long haul fibre (up to 70km)
Using fibre optics the FC1200 extends the operating distance of an E1/T1 G.703 interface whether on a router, PBX or similar equipment over singlemode fibre. The FC1200 is totally transparent to both payload and protocol and as such will support unframed or framed data such as E1 G.704, ISDN PRI, 2Mbps G.703, T1 PRI and 23B+D.
The maximum operating distance of the FC1200 is 70km, although specific installations may only operate over lower distances due to the variations in losses of different types of fibre cable, the use of connecting fibre cables, or patch panels. When operating over 50% of the maximum distances it is advisable to calculate all fibre optic connector and cable losses and compare these with the fibre optic loss budget specified for this product.
The standard FC1200 is supplied with SC fibre connectors and operates at a nominal wavelength of 1300nm. Other wavelengths are available on request, e.g. 850nm, 1550nm, 1550/1300 WDM. Other connector options are also available on request, e.g. ST, FC.
The FC1200 E1 G.703 connection is configurable between twin BNC coaxial connectors or a single RJ45. The G.703 interface supports direct connection to equipment such as Routers or PBXs, however a cross-over cable must be used to connect to an NTU.
The FC1200 has an integral mains or 40 volt power supply, and can be desktop or rack-mounted. The FC1200 can easily be rack mounted in either a1U two unit rack mount kit, a 6U eighteen unit rack mount kitor is available as a 1U quad box (which contains 4 x FC1200).
The FC1200 is also available in a card based format for use with the 4U 12-slot MetroRack managed chassis.
The FC1200 is part of a range of fibre conversion products from Metrodata. The wider product range offers fibre conversion solutions ranging from 300 baud RS-232, via Nx64kbps rates, through 2Mbps and up to 155Mbps for electrical to fibre conversion; or 155Mbps, 622Mbps or Gigabit Ethernet for fibre mode or wavelength conversion.
Line E1/T1 Electrical Interface
|Port||G.703, 75 ohm unbalanced, 120 ohm balanced, 100 ohm balanced|
|Interface||BNC (75 ohm), RJ45 (120 ohm), RJ45 (100 ohm)|
|Bit Rate||1.544Mbps, 2.048Mbps +/- 50ppm|
|Cable Lengths||RG59 = 600m, UR202 = 750m|
Multimode Fiber Interface
|Interface||Dual SC Singlemode 8/125um|
|Tx Power||0 to -5 dBm|
|Max Rx Power||-8 dBm (may need an attenuator when used over short distances)|
|Rx Sensitivity||-8 to -34 dBm|
|Optical loss budget||-5 - (-34) = 29 dB|
Compliance & Approvals
|Temperature||0 - 45 deg C|
|Humidity||0 - 95% RH, non condensing|
|Pressure||86 - 106 KPA|
Power Supply Options
|-48 VDC||-40 to -72 VDC, 200 - 100 mA|
|AC Mains||100 - 250 VAC, 50 - 400Hz, 60 - 25mA IEC connector|
|Power Consumption||4.5 watts approx when operating|
|Type||Modem, 1U high without feet, IP30C|
Dimensions W x D x H (mm)
|Rack mount||202 x 132 x 44 (without feet)|
|Tabletop||202 x 132 x 48 (with feet)|
|AC Mains: 100 - 250 VAC||DC Power: -48 VDC|
|FC1200 T1/E1 to singlemode fibre converter||80-05-919||80-21-919|
|2 unit rack mount kit||80-05-256||80-05-256|
|18 unit rack mount kit||80-05-250||80-05-255|
|MetroRack FC1200 Module||80-15-919||80-15-919|
Product variants with 12V to 24V DC operation are also available on request.
