The Metrodata FC3100 fiber extender provides a high performance solution for extending and interconnecting E3 and DS3 communication infrastructures using fibre optic cabling.

Front: FC1100 E1 to Fibre ConverterRear: FC1100 E1 Fibre Converter

Voir en français

FC3100: E3/DS3 Singlemode Fiber Extender

  • Low cost E3/DS3 fibre extender
  • Payload and protocol transparent
  • Must be used in pairs
  • E3 or DS3 selection via a switch
  • Minimal configuration of unit needed
  • Easy to install & maintain
  • Integral auto-sensing power supply (100-250V AC or -40V DC versions)
  • 12-24V DC power supply available on request
  • External alarm relay port
  • Compact modem style unit, built to European standards
  • Rack mounting kits for 2 or 18 units available
  • Quad option available with 4 FC3100 units in a 1U box
  • Alternate product for Probot 3007

Product Variants

Video Applications

Router Applications

Satellite Applications

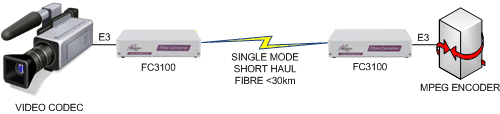

FC3100 Video to Video extension over singlemode fibre

FC3100 Video to Video extension over singlemode fibre

This application shows a pair of video systems connected over a multimode fibre using a pair of FC3100 units. This singlemode fibre could be between buildings (e.g. across a business park), or across a city (e.g. over a rented fibre).

FC3100 Video to NTE extension over singlemode fibre

FC3100 Video to NTE extension over singlemode fibre

This application shows a Video system being remotely connected to an NTE over a multimode fibre using a pair of FC3100 units. This singlemode fibre could be between buildings (e.g. across a business park), or across a city (e.g. over a rented fibre).

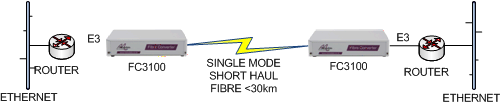

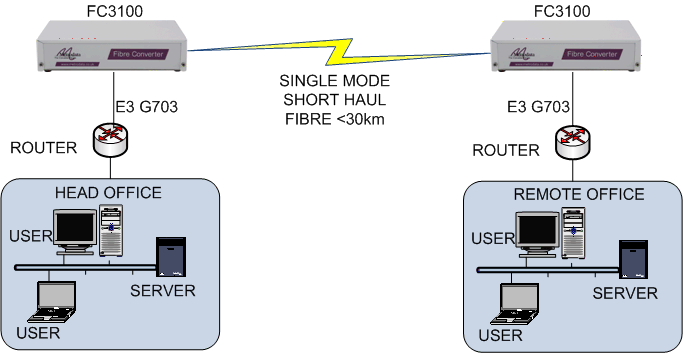

FC3100 E3 Router to Router extension over singlemode fibre

FC3100 E3 Router to Router extension over singlemode fibre

This application shows a pair of E3 routers connected over a singlemode fibre using a pair of FC3100 units. This singlemode fibre could be between buildings (e.g. across a business park), or across a city (e.g. over a rented fibre).

FC3100: DS3 Router to NTE extension over singlemode fibre

FC3100: DS3 Router to NTE extension over singlemode fibre

This application shows a DS3 router being remotely connected to an NTE over a singlemode fibre using a pair of FC3100 units. This singlemode fibre could be between buildings (e.g. across a business park), or across a city (e.g. over a rented fibre).

FC3100: DS3 Router to satellite modem extension over singlemode fibre

FC3100: DS3 Router to sateliite modem extension over singlemode fibre

This application shows a DS3 router being remotely connected to a DS3 G.703 satellite modem over a singlemode fibre using a pair of FC3100 units. This singlemode fibre could be between buildings (e.g. across a business park), or across a city (e.g. over a rented fibre).

With the need to extend, or interconnect, communication infrastructures over greater distances, and the cost of fibre falling dramatically, the Metrodata FC3X00 Fibre Converter product range provides a cost effective solution for the extension of E3 (34Mbps) and DS3 (45Mbps) services.

There are three models in the range:

  • FC3000 E3/DS3 to multimode fibre (up to 5km)
  • FC3100 E3/DS3 to singlemode short haul fibre (up to 30km)
  • FC3200 E3/DS3 to singlemode long haul fibre (up to 70km)

Using fibre optics the FC3100 extends the operating distance for E3 34Mbps G.703 and DS3 45Mbps G.703 interfaces whether on a router, video system or similar equipment over singlemode fibre. The FC3100 is totally transparent to both payload and protocol and as such will support unframed or framed data.

The maximum operating distance of the FC3100 is 30km, although specific installations may only operate over lower distances due to the variations in losses of different types of fibre cable, the use of connecting fibre cables, or patch panels. When operating over 50% of the maximum distances it is advisable to calculate all fibre optic connector and cable losses and compare these with the fibre optic loss budget specified for this product.

The standard FC3100 is supplied with SC fibre connectors and operates at a nominal wavelength of 1300nm. Other wavelengths are available on request, e.g. 850nm, 1550nm, 1550/1300 WDM. Other connector options are also available on request, e.g. ST, FC.

The FC3100 G.703 connection has twin BNC coaxial connectors supporting direct connection to equipment such as Routers, Video systems or an NTU.

The FC3100 has integral mains or 40 volt power supply, and can be desktop or rack-mounted. The FC3100 range can easily be rack mounted in either a 1U two unit rack mount kit , a 6U eighteen unit rack mount kit or is available as a 1U quad box (which contains 4 x FC3100 units).

The FC3100 is also available in a card based format for use with the 4U 12-slot MetroRack managed chassis.

The FC3100 is part of a range of fibre conversion products from Metrodata. The wider product range offers fibre conversion solutions ranging from 300 baud RS-232, via Nx64kbps rates, through 2Mbps and up to 155Mbps for electrical to fibre conversion; or 155Mbps, 622Mbps or Gigabit Ethernet for fibre mode or wavelength conversion.

Single Mode Short Haul Line Interface
Interface Dual SC single mode 8/125 um
Wavelength 1300nm
Tx Power -8 dBm to -15 dBm
Max Rx input power -8 dBm
Rx Sensitivity -8 to -31 dBm
Optical Loss Budget -15 - (-31) = 16 dB

Line E3/DS3 Electrical Interface
Port G.703, 75 ohm unbalanced
Line Coding E3: HDB3, DS3: B3ZS
E3 Bit Rate 34.368 Mbps +/- 20 ppm
DS-3 Bit Rate 44.736 Mbps +/- 20 ppm
Barrier Fully compliant as per EN41003

Compliance & Approvals
strong Safety EN41003, EN60950
strong EMC EN55022. EN50082

Power Supply Options
-48 VDC Supply -40 to -72 VDC, 200 - 100 mA
AC Mains 100 - 250 VAC, 50 - 60 Hz, 60 - 25 mA, IEC Connector
Power Consumption 6 watts approx when operating

Environment
Temp 0 - 50 deg C
Humidity 0 - 95% RH, non-condensing
Pressure 86 - 106 KPA

Packaging
Type Modem, 1U high without feet, IP30C

Dimensions ( W x D x H m )
Rack mount 202 x 132 x 44 (without feet)
Tabletop 202 x 132 x 48 (with feet)
Part Number
Product AC Mains: 100 - 250 VAC DC Power: -48 VDC
80-05-921 80-21-921
2 unit rack mount kit 80-05-256 80-05-256
18 unit rack mount kit 80-05-255 80-05-250
Quad FC310080-405-92180-421-921
MetroRack FC3100 Module80-15-92180-15-921

Product variants with 12V to 24V DC operation are also available on request.
