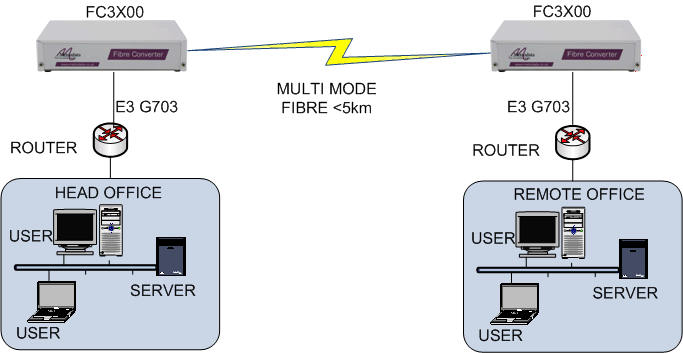

The Metrodata FC3X00 product family provides a high performance solution for extending and interconnecting E3 and DS3 communication infrastructures using fibre optic cabling.

Front: FC3X00 E3/DS3 to fibre ConverterRear: FC3X00 E3/DS3 fibre Converter


Voir en français

FC3X00: E3/DS3 Fiber Extender Family

  • Low cost E3/DS3 fibre extender
  • Payload and protocol transparent
  • Must be used in pairs
  • E3 or DS3 selection via a switch
  • Minimal configuration of unit needed
  • Easy to install & maintain
  • Integral auto-sensing power supply (100-250V AC or -40V DC versions)
  • 12-24V DC power supply available on request
  • External alarm relay port
  • Compact modem style unit, built to European standards
  • Rack mounting kits for 2 or 18 units available
  • Quad option available with 4 units in a 1U box
  • Alternate product for Probot 3007

Product Variants

Video Applications

Router Applications

Satellite Applications

FC3000 Video to Video extension over multimode fibre

FC3000 Video to Video extension over multimode fibre

This application shows a pair of video systems connected over a multimode fibre using a pair of FC3000 units. This multimode fibre could be within a building (e.g. between two video systems at either end of a large hotel), or across a campus (e.g. between two departmental buildings of a University).

FC3000 Video to NTE extension over multimode fibre

FC3000 Video to NTE extension over multimode fibre

This application shows a Video system being remotely connected to an NTE over a multimode fibre using a pair of FC3000 units. This multimode fibre could be within a building (e.g. between a video system and a switch room at either ends of a building), or across a campus (e.g. between two departmental buildings of a University).

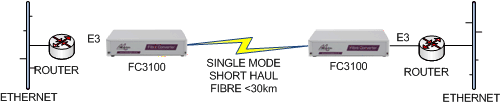

FC3100 E3 Router to Router extension over singlemode fibre

FC3100 E3 Router to Router extension over singlemode fibre

This application shows a pair of E3 routers connected over a singlemode fibre using a pair of FC3100 units. This singlemode fibre could be between buildings (e.g. across a business park), or across a city (e.g. over a rented fibre).

FC3100: DS3 Router to NTE extension over singlemode fibre

FC3100: DS3 Router to NTE extension over singlemode fibre

This application shows a DS3 router being remotely connected to an NTE over a singlemode fibre using a pair of FC3100 units. This singlemode fibre could be between buildings (e.g. across a business park), or across a city (e.g. over a rented fibre).

FC3200 : DS3 Router to satellite modem extension over long haul singlemode fibre

FC3200: DS3 Router to sateliite modem extension over long haul singlemode fibre

This application shows a DS3 router being remotely connected to a DS3 G.703 satellite modem over a longhaul singlemode fibre using a pair of FC3200 units. This singlemode fibre could be across a city, or between cities (e.g. over a rented fibre).

With the need to extend, or interconnect, communication infrastructures over greater distances, and the cost of fibre falling dramatically, the Metrodata FC3X00 fibre Converter product range provides a cost effective solution for the extension of E3 (34Mbps) and DS3 (45Mbps) services.

There are three models in the range:

  • FC3000 E3/DS3 to multimode fibre (up to 5km)
  • FC3100 E3/DS3 to singlemode short haul fibre (up to 30km)
  • FC3200 E3/DS3 to singlemode long haul fibre (up to 70km)

Using fibre optics the FC3X00 products extend the operating distance for E3 34Mbps G.703 and DS3 45Mbps G.703 interfaces whether on a router, video system or similar equipment over multimode or singlemode fibre. The FC3X00 products are totally transparent to both payload and protocol and as such will support unframed or framed data.

The maximum operating distance of the FC3X00 is 5km over multimode fibre, or 70km over singlemode fibre, although specific installations may only operate over lower distances due to the variations in losses of different types of fibre cable, the use of connecting fibre cables, or patch panels. When operating over 50% of the maximum distances it is advisable to calculate all fibre optic connector and cable losses and compare these with the fibre optic loss budget specified for this product.

The standard FC3X00 is supplied with SC fibre connectors and operates at a nominal wavelength of 1300nm. Other wavelengths are available on request, e.g. 850nm, 1550nm, 1550/1300 WDM. Other connector options are also available on request, e.g. ST, FC.

The FC3X00 G.703 connection has twin BNC coaxial connectors supporting direct connection to equipment such as Routers, Video systems or an NTU.

The FC3X00 has integral mains or 40 volt power supply, and can be desktop or rack-mounted. The FC3X00 range can easily be rack mounted in either a 1U two unit rack mount kit , a 6U eighteen unit rack mount kit or is available as a 1U quad box (which contains 4 x FC3X00 units).

The FC3X00 is also available in a card based format for use with the 4U 12-slot MetroRack managed chassis.

The FC3X00 is part of a range of range of fibre conversion products from Metrodata. The wider product range offers fibre conversion solutions ranging from 300 baud RS-232, via Nx64kbps rates, through 2Mbps and up to 155Mbps for electrical to fibre conversion; or 155Mbps, 622Mbps or Gigabit Ethernet for fibre mode or wavelength conversion.

Single Mode Short Haul Line Interface
Interface Dual SC single mode 8/125 um
Wavelength 1300nm
Tx Power -8 dBm to -15 dBm
Max Rx input power-8 dBm
Rx Sensitivity-8 to -31 dBm
Optical Loss Budget-15 - (-31) = 16 dB

Single Mode Long Haul Line Interface
InterfaceDual SC single mode 8/125 um
Wavelength 1300nm
Tx Power0 dBm to -5 dBm
Max Rx input power-8 dBm (may need attenuator)
Rx Sensitivity -8 to -34 dBm
Optical Loss Budget -5 - (-34) = 29 dB

Multi Mode fibre Interface
Interface Dual SC multi mode 62.5/125 um
Wavelength 1300nm
Tx Power-14 to -19 dBm
Max Rx Input Power-14 dBm
Rx Sensitivity -14 to -30 dBm
Optical Loss Budget-19 - (-30) = 11 dB

Line E3/DS3 Electrical Interface
PortG.703, 75 ohm unbalanced
Line CodingE3: HDB3, DS3: B3ZS
E3 Bit Rate34.368 Mbps +/- 20 ppm
DS-3 Bit Rate 44.736 Mbps +/- 20 ppm
BarrierFully compliant as per EN41003

Compliance & Approvals
SafetyEN41003, EN60950
EMC EN55022. EN50082

Power Supply Options
-48 VDC Supply-40 to -72 VDC, 200 - 100 mA
AC Mains100 - 250 VAC, 50 - 60 Hz, 60 - 25 mA, IEC Connector
Power Consumption 6 watts approx when operating

Environment
Temp 0 - 50 deg C
Humidity 0 - 95% RH, non-condensing
Pressure 86 - 106 KPA

Packaging
Type Modem, 1U high without feet, IP30C

Dimensions ( W x D x H m )
Rack mount 202 x 132 x 44 (without feet)
Tabletop 202 x 132 x 48 (with feet)

Product variants with 12V to 24V DC operation are also available on request.

Part Number
Product AC Mains: 100 - 250 VAC DC Power: -48 VDC
FC3000 Multimode to E3/DS-3 80-05-92080-21-920
FC3100 Singlemode Shorthaul to E3/DS-380-05-92180-21-921
FC3200 Singlemode Longhaul to E3/DS-380-05-92280-21-922
2 unit rack mount kit 80-05-256 80-05-256
18 unit rack mount kit 80-05-255 80-05-250
Quad FC300080-405-92080-421-920
Quad FC310080-405-92180-421-921
Quad FC320080-405-92280-421-922
MetroRack FC3000 Module80-15-92080-15-920
MetroRack FC3100 Module80-15-92180-15-921
MetroRack FC3200 Module80-15-92280-15-922
