The FC6X00 provides a new level of price/ performance in connecting switches and routers to carriers' single mode fibers. As the demands for on-site communication increase, certainly in the IP arena, fibre cable becomes the attractive solution in capacity, cost and quality. The FC6X00 is designed to need minimal installation in a desk-top or rack situation, and have integral power supply, and so are self-contained – just connect the fibre connectors and power and the FC6X00 transports data at any rate up to 622Mbit/s.
Two versions of the FC6X00 both cater for Singlemode fibre connection – the FC6000 for shorthaul and the FC6500 for longhaul.
Front: FC6000 Singlemode to Multimode Fiber Converter
Rear: FC6000 Singlemode to Multimode Fiber Converter
Connecting a switch or router to single mode Fiber usually requires the use of an expensive single mode interface.
The FC6X00 offers a pair of dual SC interfaces, an LED for status checking, and needs no configuration. The FC6X00 is NOT protocol sensitve and operates automatically at the received data rate, which can be any speed up to 622Mbps. It requires NO configuration and has a single LED for status.
All Metrodata fibere converters are supplied as standard with SC connectors operating at a nominal wavelength of 1300nm. Other wavelengths are available on request, e.g. 850nm, 1550nm, 1550/1300 WDM. Other connectors are also available on request, e.g. ST, FC.
The FC6X00 range can easily be rackmounted in either a 1U two unit rackmount kit, 1U quad (4 x FC6X00) box or in a 6U eighteen unit rackmount kit.
The FC6000, and FC6500 are part a range of fiber conversion products from Metrodata offering solutions from 2Mbit/s up to 155Mbit/s for various electrical and fibre interfaces, to be extended to 622Mbit/s and WDM
- Operates at any speed up to 622Mbps
- Simple single mode to multi mode conversion
- Use instead of expensive singlemode router interfaces
- Low-cost Fiber interfacing
- External Alarm relay port
- Zero configuration required - just plug & go
- Compact unit with integral power supply
- Easy to install & maintain
- Rack mounting kits for 2 or 18 units available
- Operates at any speed up to 622Mbps

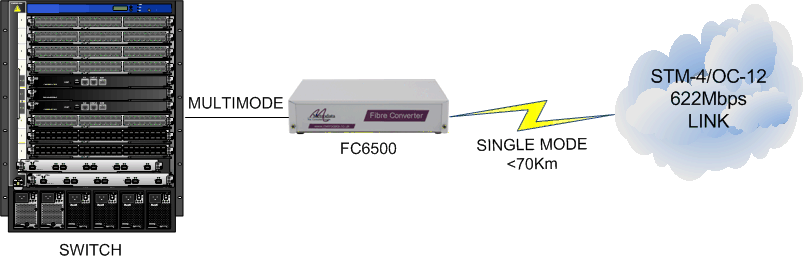

FC6000 Application Diagram: Singlemode Fiber to Multimode Fiber
Multimode Fiber Interface
| Port |
G.957
|
| Interface |
Dual SC Multimode 62 5/125um |
| Tx Power |
-14 to -19 dBm |
| Max Rx Power |
-14 dBm |
| Rx Sensitivity |
-14 to -30 dBm |
| Optical loss budget |
-19 - (-30) = 11 dB |
Bit Rate
|
Up to 622Mbps
|
Singlemode Short Haul Fiber Interface
Port
|
G.957
|
| Interface |
Dual SC singlemode 8/125um |
| Tx Power |
-8 to -15 dBm |
| Max Rx Power |
-8 dBm |
| Rx Sensitivity |
-8 to -31 dBm |
| Optical loss budget |
-15 - (-31) = 16 dB |
Bit Rate
|
Up to 622Mbps |
Singlemode Long Haul Fiber Interface
Port
|
G.957
|
| Interface |
Dual SC singlemode 8/125um |
| Tx Power |
0 to -5 dBm |
| Max Rx Power |
-8 dBm (may need an attenuator) |
| Rx Sensitivity |
-8 to -34 dBm |
| Optical loss budget |
-5 - (-34) = 29 dB |
| Bit Rate |
Up to 622Mbps
|
Compliance & Approvals
| Safety |
EN60950 |
| EMC |
EN55022, EN50082 |
Environment
| Temperature |
0 - 45 deg C |
|
0 - 95% RH, non condensing |
| Pressure |
86 - 106 KPA |
Power Supply Options
| -48 VDC |
-40 to -72 DC, 200 - 100 mA |
| AC Mains |
100 - 250v AC, 50 - 400Hz, 60 - 25mA IEC connector |
| Power Consumption |
4.5 watts approx when operating |
Packaging
| Type |
Modem, 1U high without feet |
Dimensions W x D x H (mm)
| Rackmount |
202 x 132 x 44 (without feet) |
| Tabletop |
202 x 132 x 48 (with feet) |
|
Part Number
|
| Product |
AC Mains: 100 - 250 VAC |
DC Power: - 48 VDC
|
| FC6000 Singlemode Shorthaul to Multimode |
80-05-913 |
80-21-913 |
| FC6500 Singlemode Longhaul to Multimode |
80-05-914 |
80-21-914 |
| 2 Unit Rackmount Kit |
80-05-256 |
80-05-256 |
18 Unit Rackmount Kit
|
80-05-255
|
80-05-250
|
| Quad version available upon request. |
|
|
|
