Metrodata’s MetroRack presents you with a modular delivery platform offering centralised status checking and high module density for the efficient use of limited rack space.

MetroRack: Centralised Management Chassis

MetroRACK: Modular Delivery Platform

  • Centralised management in a single rack solution
  • Multiple I/O module options available in a single rack
  • Compact 4U 19” rack spacing
  • 12 slot chassis unit with SNMP management card
  • 13 slot chassis unit without SNMP management card
  • Alarm extension relays
  • Hot-Swap for all modules & power supplies
  • SNMP remote management
  • Cost effective solution to multiple interface requirements
  • Redundant load sharing PSUs for increased resilience

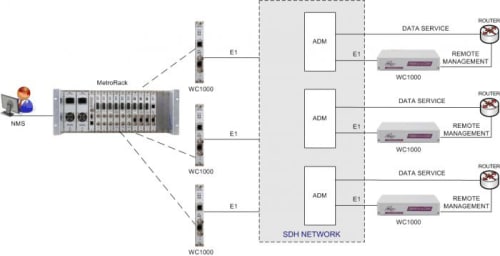

Service Delivery of Management Services using the MetroRACK and WC1000 modules along with standalone WC1000 units

MetroRack for Delivery of Management Services

This application shows how a MetroRACK chassis fitted with WC1000 modules can be used in an exchange/POP along with standalone WC1000 units to deliver a management connection to the customer site using spare E1 capacity of the ADM.

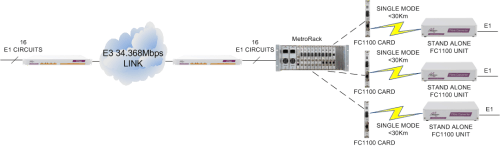

E1 Service Delivery over Fibre using the Emux in conjunction with MetroRACK fitted with FC1000 modules and multiple FC1000 standalone units

Emux and MetroRack to deliver E1 services over fibre

This application shows how a MetroRACK chassis fitted with FC1000 modules can be used in conjunction with an Emux in an exchange/POP along with standalone FC1000 units to deliver multiple E1 services over a fibre infrastructure.

The MetroRACK is a 4U high, 19” rack based chassis unit supporting up to 2 power supply modules (PSUs) and has 13 available slots that can accommodate the SNMP management module and a selection of I/O interface modules. Spare Modules can be resident in the chassis ready for immediate additional functionality or to provide ‘in situ’ spares. Ease of maintenance and the provisioning of new services is fulfilled through the modules and power supplies being “hot swap” compliant.

The MetroRACK only requires a single PSU to support a full rack of cards but for increased resiliency redundant PSUs can be used. The PSUs are load sharing when used in the optional 1+1 redundant configuration. For maximum MTBF (mean time between failures) the -48V DC PSU modules may be used. Typical operating power consumption is less than 75 watts.

The I/O Modules for MetroRACK support the core standalone operation of each I/O module by simple bit switch configuration, but when the optional Management module is fitted, a fully managed chassis including SNMP capability is realised.

Management of the MetroRACK is either via the console port, or the management Ethernet port using SNMP or Telnet. SNMP version 1 is supported, including MIB-2 and Traps. SNMP traps are generated based on configurable alarms generated for any of the I/O Modules. TFTP download of software and configuration is also supported. To further future proof the MetroRACK system, remote hardware upgrade of CPLD firmware is included. Management access has password protection whether via the console or Telnet. Performance statistics are available for all ports with data collection in 15 minute segments for a 24 hour period.

MetroRack: Centralised Management Chassis

MetroRack: Centralised Management Chassis

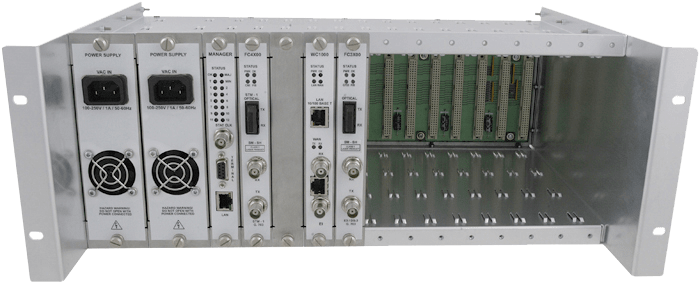

MetroRACK Centralised Management Chassis

The 2 left hand slots are double width and are used for the power supply modules. If only one power supply is fitted, then the other power supply slot is not available for I/O modules, but must have a blanking plate fitted for EMC compliance. A Manager module may occupy the first single width slot, or alternatively this can be used for an I/O module. The subsequent slots provide space for up to 12 I/O modules. Any unoccupied slots must have blanking plates fitted for EMC compliance.

The following specifications relate to the MetroRACK Chassis without any interface modules fitted. Each individual module also has its own specifications, check each module for further information.

Configuration & Management
Type Menu driven user interface
Access Local console, Telnet, SNMP
Interface V.24 terminal, 10baseT network port
Security Access by two level password
System Non-volatile configuration

Dimensions & Capacity
Height 4U (178mm)
Width 19" (484mm)
Depth 251mm
Alarm Extension 9 way D-type on MetroRACK rear panel
Interface cable entry At MetroRACK front panel
Typical Configuration 2 PSU Modules, 1 Management module, 12 Interface Modules

Environment
Temp 0 - 50 deg C
Humidity 0 - 95% RH, non condensing
Pressure 86 - 106 KPA

Compliance & Approvals
Safety EN60950
EMC EN55022, EN50082

Power supply Options
-48 VDC Supply -36 to -72 VDC, 2 amps
AC Mains 85 - 250 VAC, 50/60 Hz, 1 amp, IEC connector
Power Consumption Up to 75 watts when operating
DescriptionPart No.Configuration Comment
80-15-001 19" rack mounting chassis, single AC PSU, spare PSU slot, and 13 module slots
Unmanaged Chassis Dual AC PSU 80-15-002 19" rack mounting chassis, dual AC PSUs, and 13 module slots
Unmanaged Chassis DC PSU 80-15-021 19" rack mounting chassis, single DC PSU, spare PSU slot, and 13 module slots
Unmanaged Chassis Dual DC PSU 80-15-022 19" rack mounting chassis, dual DC PSUs, and 13 module slots
Managed Chassis AC PSU 80-15-011 19" rack mounting chassis, single AC PSU, spare PSU slot, management module, and 12 module slots
Managed Chassis Dual AC PSU 80-15-012 19" rack mounting chassis, dual AC PSUs, spare PSU slot, management module, and 12 module slots
Managed Chassis DC PSU 80-15-031 19" rack mounting chassis, single AC PSU, spare PSU slot, management module, and 12 module slots
Managed Chassis Dual DC PSU 80-15-032 19" rack mounting chassis, dual DC PSUs, spare PSU slot, management module, and 12 module slots
I/O modules
(see separate Datasheets)
12 user I/O modules may be fitted if an SNMP Management module is used or alternatively
13 user I/O modules may be fitted if an SNMP Management module is not used

ComponentPart No. Configuration Comment
Power Supply Blanking Plate 80-15-105 Blanking plate for power supply slot in single PSU MetroRACK configuration
Interface Card Blanking Plate 80-15-107 Blanking plate for interface card slot in MetroRACK configuration
AC Power Supply Module 80-15-110 100-250 VAC 50/60 Hz, 1 amp
DC Power Supply Module 80-15-115 -48 VDC 3 amp
Management Module 80-15-120 Occupies 1 chassis slot, leaving 12 slots for Interface modules

The modules currently available for use with the MetroRACK chassis are shown below, with their functional performance specifications being identical to those of the equivalent standalone unit:

Interface Module TypePart No. Module Function
Fibre Conversion 80-15-910 FC1000 E1 2Mbps G.703 Electrical over Multimode Fibre Converter
Fibre Conversion 80-15-918 FC1100 E1 2Mbps G.703 Electrical over Singlemode Short Haul Fibre Converter
Fibre Conversion 80-15-919 FC1200 E1 2Mbps G.703 Electrical over Singlemode Long Haul Fibre Converter
Fibre Conversion 80-15-920 aFC3000 E3/DS3 34Mbps/45Mbps G.703 Electrical over Multimode Fibre Converter
Fibre Conversion 80-15-921 FC3100 E3/DS3 34Mbps/45Mbps G.703 Electrical over Singlemode Short Haul Converter
Fibre Conversion 80-15-922 FC3200 E3/DS3 34Mbps/45Mbps G.703 Electrical over Singlemode Long Haul Converter
Fibre Conversion 80-15-915 FC4000 STM-1/OC-3 155Mbps G.703 Electrical to Multimode Fibre Converter
Fibre Conversion 80-15-916 FC4100 STM-1/OC-3 155Mbps G.703 Electrical to Singlemode Short Haul Converter
Fibre Conversion 80-15-917 FC4200 STM-1/OC-3 155Mbps G.703 Electrical to Singlemode Long Haul Converter
LAN Extension 80-15-541 WC1000 10/100 BaseT over E1 2Mbps G.703 Converter (N.B. single Ethernet port supported, as compared with the 4-port standalone unit)
LAN Extension 80-16-545 WCC-SERIAL 10/100/1000 BaseT and 1000baseX over Serial Converter
Router Interface Conversion 80-15-210 DC1X00 Unframed E1 2Mbps G.703 Electrical to X.21 / V.35 Converter
Ethernet Media Conversion 80-16-934 FCC9000 Dual 10/100/1000baseT to 100baseF/1000baseX Converter each with Resilient SFP Fibre Ports

If you require another interface or one currently under development please contact our sales team with your requirements.

The modules currently available for use with the MetroRACK chassis are shown below, with their functional performance specifications being identical to those of the equivalent standalone product:

Fibre Conversion
Module PhotoModule Function

MetroRack FC1000 module

FC1000 E1 2Mbps G.703 Electrical over Multimode Fibre Converter

MetroRack FC1100 module

FC1100 E1 2Mbps G.703 Electrical over Singlemode Short Haul Fibre Converter

MetroRack FC1200 module

FC1200 E1 2Mbps G.703 Electrical over Singlemode Long Haul Fibre Converter

MetroRack FC3000 module

FC3000 E3/DS3 34Mbps/45Mbps G.703 Electrical over Multimode Fibre Converter

fMetroRack FC3100 module

FC3100 E3/DS3 34Mbps/45Mbps G.703 Electrical over Singlemode Short Haul Converter

MetroRack FC3200 module

FC3200 E3/DS3 34Mbps/45Mbps G.703 Electrical over Singlemode Long Haul Converter

MetroRack FC4000 module

FC4000 STM-1/OC-3 155Mbps G.703 Electrical to Multimode Fibre Converter

MetroRack FC4100 module

FC4100 STM-1/OC-3 155Mbps G.703 Electrical to Singlemode Short Haul Converter

MetroRack FC4200 module

FC4200 STM-1/OC-3 155Mbps G.703 Electrical to Singlemode Long Haul Converter

LAN Extension
Module PhotoModule Function

MetroRack WC1000 module

WC1000 10/100 BaseT over E1 2Mbps G.703 Converter (N.B. single Ethernet port supported, as compared with the 4-port standalone unit)
WCC-SERIAL LAN Extension offering 10/100/1000 BaseT and SFP over a Serial Interface (X.21 / V.35 / EIA-530)

Router Interface Conversion
Module PhotoModule Function

MetroRack DC1x00 module

DC1X00 Unframed E1 2Mbps G.703 Electrical to X.21 / V.35 Converter

Ethernet Media Conversion
Module PhotoModule Function

MetroRack FCC9000 Module

FCC9000 Dual 10/100/1000baseT to 100baseF/1000baseX Converter each with Resilient SFP Fibre Ports

Common Services Modules
Module PhotoModule

MetroRack Management module

Management module

MetroRack AC Power Supply module

AC PSU module

Modules under development
Module PhotoModule Function
DC3X00Router Interface conversion supporting Fractional E1 (Nx64kbps) G.704 Electrical to X.21 / V.35 Conversion

If you require another interface or one currently under development please contact our sales team with your requirements who will be happy to help.
