8 Channel DWDM Multiplexer / De-Multiplexer

Close
Contact Me Request


Call Me!

By submitting a request you agree to our Privacy Policy

The MetroWAVE-D8-25 and MetroWAVE-D8-51 operate in the 100GHz DWDM C-band.

MetroWAVE-D8

MetroWAVE: Passive 8 Channel DWDM Multiplexer

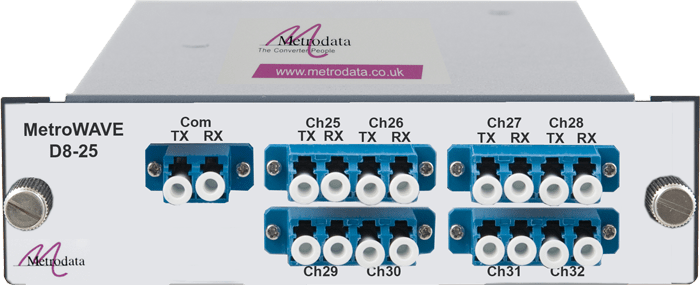

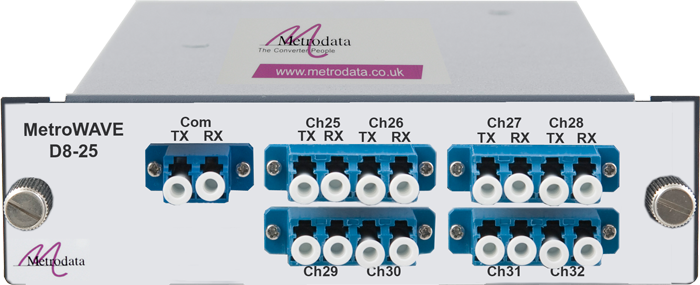

MetroWAVE-D8 Multiplexer / De-Multiplexer

  • Optical multiplexing of up to 8 separate DWDM applications
  • CWDM compatible uplinks (CWDM channels 1550nm & 1530nm respectively)
  • Voice, data, telemetry and CCTV can all be supported
  • Simple fibre 'plug & play' connectivity to converge complex applications
  • Wide range of DWDM Transcievers available
  • Unpowered passive devices for highest possible reliability
Product Family:

The MetroWAVE product range offers a series of passive CWDM and DWDM optical multiplexing functions. CWDM and DWDM multiplexing is a technique whereby different wavelengths of light are multiplexed together and transported over a singlemode fibre pair, then demultiplexed at the far end back into their original wavelengths.

The MetroWAVE product range performs these CWDM and DWDM multiplexing and demultiplexing functions passively, i.e. directly optically without using any optical-electrical-optical conversions or repeater functions. This is now the most economic approach to CWDM and DWDM multiplexing due to the widespread availability of cost effective long range vendor compatible CWDM and DWDM fibre transceivers. The unpowered, fixed mechanical nature of these MetroWAVE products offers greater robustness and higher levels of reliability than active devices offering similar functionality.

The MetroWAVE-D8-25 and MetroWAVE-D8-51 operate in the 100GHz DWDM C-band (ch25-ch32 and ch51-ch58 respectively). The combined uplinks operate within CWDM channels 1550nm and 1530nm respectively, facilitating optional cascade connectivity from the corresponding ports of the MetroWAVE-9S CWDM Mux/Demux, thereby providing an excellent 'expansion' option for that product.

Whilst the MetroWAVE product range is compatible with user exchangeable SFP, SFP+ and XFP devices (along with most other industry standard fibre transceivers), it is recommended that these are purchased from Metrodata to guarantee their specification and compatibility with each other.

Optical Specifications
Parameter Min Typical Max
Operating Centre Wavelength Combined Uplink1550nm (D8-25) & 1530 (D8-51)
Ch PortsCh25-Ch32 (D8-25), Ch51-Ch58 (D8-51)
Passband bandwidth Combined Uplinkλc±6.5nm
Ch portsλc±0.11nm
Insertion Loss3.0dB
Link Loss 4.0dB
Isolation Adjacent Channel30dB
Non-Adjacent Channel40 dB
PDL0.15dB
Directivity50dB
Return Loss45dB
Power Supply
Power SupplyUnpowered
Environment
MinMax
Operating Temperature-5 °C+75 °C
Storage Temperature-40 °C+85 °C
Relative Humidity5 to 95% maximum, non-condensing
Pressure86 - 106kPa
Dimensions
MetroWAVE-rack435 x 170 x 44 (WxLxH mm)
MetroWAVE-D8142 x 170 x 39
Compliance & Approvals
SafetyEN60950
EMCEN55022, EN50082
Order Codes
Product Part Number
MetroWAVE-D8-2580-33-012
MetroWAVE-D8-5180-33-014
MetroWAVE-rack (3 units)80-32-051

Whilst Metrodata's fibre product ranges use industry standard user exchangeable SFPs, it is recommended that these are purchased from Metrodata to guarantee their specification and compatibility with each other. For all fibre transceivers including vendor compatible SFP, SFP+, XFP, X2 and XENPAK transceivers, with long distance, CWDM or DWDM specifications then please contact our sales team with your requirements.
