RS232 to Multimode Fiber Optic Modem

Metrodata now offers an enhanced converter with features providing the benefits of supporting RS232 asynchronous data rates up to 256kbps over multimode fiber.

RS232 to Multimode Fibre Modem

  • Asynchronous RS-232 up to 256kbps
  • Standard 9 way D-type RS-232 connector
  • DTE or DCE interface
  • Must be used in pairs
  • Data rate agile
  • Payload and protocol transparent
  • Minimal configuration of unit needed
  • Easy to install & maintain
  • Integral auto-sensing power supply (100-250V AC or -40V DC versions)
  • 12-24V DC power supply available on request
  • External alarm relay port
  • Compact modem style unit, built to European standards
  • Rack mounting kits for 2 or 18 units available
  • Alternate product for Probot 3008
  • FIMO-232 Fibre Optic Modem product range
Extending RS232 over fiber
FIMO-232 as an RS232 over multimode fiber converter

There are many RS232 interface devices such as terminals, printers, computers, video displays and ticketing machines that can be easily connected over the increasing use of Fibre links.

Often converters only offer 19.2kbps, 38.4kbps or up to 115.2kbps and operate as a DCE whereas the Metrodata FIMO-232 increases the asynchronous data rate up to the higher rate of 256kbps and has a cross over function supporting DCE to DTE, DCE to DCE and DTE to DTE configurations. The FIMO-232 is a standalone unit with one used at each end of the fiber link

There are three models in the range:

The maximum operating distance of the FIMO-232 is 5km using multimode fiber, although specific installations may only operate over lower distances due to the variations in losses of different types of fiber cable, the use of connecting fiber cables, or patch panels. When operating over 50% of the maximum distances it is advisable to calculate all fiber optic connector and cable losses and compare these with the fiber optic loss budget specified for this product.

All Metrodata fiber modems are supplied as standard with SC connectors operating at a nominal wavelength of 1300nm. Other wavelengths are available on request, e.g. 850nm, 1550nm, 1550/1300 WDM. Other connectors are also available on request, e.g. ST, FC.

The FIMO-232 can easily be rack mounted in either a 1U two unit rack mount kit, or in a 6U eighteen unit rack mount kit.

The FIMO-232 is part of a range of products from Metrodata, offering fiber conversion solutions ranging from 300 baud RS-232, via Nx64kbps rates, through 2Mbps and up to 155Mbps for electrical to fiber conversion; or 155Mbps, 622Mbps or Gigabit Ethernet for fiber mode or wavelength conversion.

Terminal extension over multimode fiber
FIMO-232/MM: RS232 extension over multimode fiber

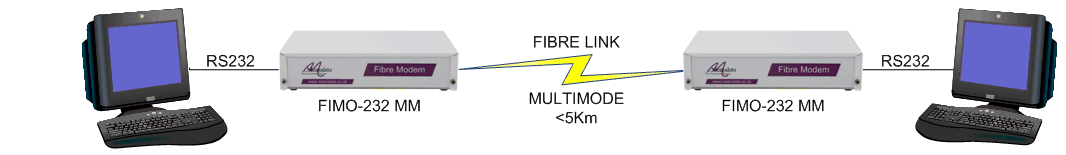

This application shows a terminal session being extended over a multimode fiber using a pair of FIMO-232/MM units. This multimode fiber could be within a building (e.g. between a terminal and a switch room at either ends of a building), or across a campus (e.g. between two departmental buildings of a University).

RS-232 Electrical Interface
Presentation 9 way D-type, Male DTE or Female DCE
Signals TXD, RXD, RTS, CTS, DCD, DSR, DTR, RI
Maximum data rate 256Kbps
LEDs TXD, RXD, RTS, CTS, DCD, DSR, DTR, RI
Multimode Fiber Interface
Interface Dual SC Multimode 62 5/125um
Wavelength 1300nm
Bit Rate 155 Mbps +/- 15ppm
Tx Power -14 to -19 dBm
Max Rx Power -14 dBm
Rx Sensitivity -14 to -30 dBm
Optical loss budget -19 - (-30) = 11 dB
Compliance & Approvals
Safety EN60950
EMC EMC EN55032
Environment
Temperature 0-50 deg C
Humidity0-95% RH, non condensing
Pressure 86-106 kPa
Power Supply Options
-48 VDC -40 to -72 DC, 200-100 mA
AC Mains 100-250 VAC, 50-400Hz, 60-25mA IEC connector
Power Consumption 6 watts approx when operating
Packaging
Type Modem, 1U high without feet, IP30C
Dimensions W x D x H (mm)
Rack mount 202 x 132 x 44 (without feet)
Tabletop 202 x 132 x 48 (with feet)
Part Number
Product AC Mains DC Power
FIMO-232/MM80-05-92480-21-924
2 unit rack mount kit80-05-25680-05-256
18 unit rack mount kit80-05-25080-05-255

Product variants with 12V to 24V DC operation are also available on request.
