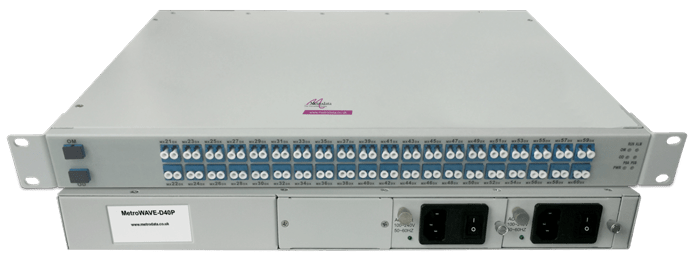

Passive DWDM Multiplexer
- Optical multiplexing of up to 40 separate 100GHz DWDM applications
- Any port can operate at any speed up to 10G
- Full range of DWDM transceivers are available
- High stability, dual hot-swappable power supply, 1+1 protection
Optical Specifications |
| Min | Typ | Max |
| Number of Channels | 40 |
| Channel Spacing | 100GHz |
| Channel Centre Wavelength | C-band ITU 100GHz Grid channels |
| Centre Frequency Accuracy | ± 0.05 |
| 1dB Passband | 0.4nm | | |
| 3dB Passband | 0.6nm | | |
| Insertion Loss Passband | | 4.5dB | 6.0dB |
| Link Loss Passband | | 9.0dB | 10.0dB |
| Adjacent Channel Isolation | 25dB |
| Non-Adjacent Channel Isolation | 32dB |
| Total Crosstalk | 25dB |
| Insertion Loss Uniformity | 1.5dB |
| Directivity (Mux Only) | 40dB |
| Insertion Loss Riple | 0.5dB |
| Optical Return Loss | 40dB |
| Polarisation Dependent Loss (PDL) | | 0.3dB | 0.5dB |
| Polarisation Mode Dispersion (PMD) | 0.5ps |
| Maximum Optical Power | 24dBm |
Power Supply |
| Power Supply | Dual 180VAC to 250VAC, or Dual -36VDC to 72VDC |
| Power Consumption | ≤25W |
Environment |
| Operating Temperature | -5 °C to +75 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5 to 95% maximum, non-condensing |
Dimensions |
| Size W x D x H (mm) | 435 x 340 x 43.6 |
Compliance & Approvals |
| Safety and EMC | Compliance with FCC, UL, CE, TUV, CSA |
Channel List | |||||
| On ITU Grid in C-Band | | On ITU Grid in C-Band |
| Channel | Frequency (THz) | Wavelength (nm) | Channel | Frequency (THz) | Wavelength (nm) |
| C21 | 192.1 | 1560.61 | C41 | 194.1 | 1554.53 |
| C22 | 192.2 | 1559.79 | C42 | 194.2 | 1543.73 |
| C23 | 192.3 | 1558.98 | C43 | 194.3 | 1542.94 |
| C24 | 192.4 | 1558.17 | C44 | 194.4 | 1542.14 |
| C25 | 192.5 | 1557.36 | C45 | 194.5 | 1541.35 |
| C26 | 192.6 | 1556.55 | C46 | 194.6 | 1540.56 |
| C27 | 192.7 | 1555.75 | C47 | 194.7 | 1539.77 |
| C28 | 192.8 | 1554.94 | C48 | 194.8 | 1538.98 |
| C29 | 192.9 | 1554.13 | C49 | 194.9 | 1538.19 |
| C30 | 193.0 | 1553.33 | C50 | 195.0 | 1537.40 |
| C31 | 193.1 | 1552.52 | C51 | 195.1 | 1536.61 |
| C32 | 193.2 | 1551.72 | C52 | 195.2 | 1535.82 |
| C33 | 193.3 | 1550.92 | C53 | 195.3 | 1535.04 |
| C34 | 193.4 | 1550.12 | C54 | 195.4 | 1534.25 |
| C35 | 193.5 | 1549.32 | C55 | 195.5 | 1533.47 |
| C36 | 193.6 | 1548.51 | C56 | 195.6 | 1532.68 |
| C37 | 193.7 | 1547.72 | C57 | 195.7 | 1531.90 |
| C38 | 193.8 | 1546.92 | C58 | 195.8 | 1531.12 |
| C39 | 193.9 | 1546.12 | C59 | 195.9 | 1530.33 |
| C40 | 194.0 | 1545.32 | C60 | 196.0 | 1529.55 |
Order Codes | ||
| 180 - 240VAC | -48VDC |
| MetroWAVE-D40P | 80-33-032 Add to Quote | 80-33-033 Add to Quote |
