Multiplexer Solution for E1 Service Delivery
The Emux provides a simple effective solution for the delivery of multiple E1 services over a fibre infrastructure.
E1 Multiplexer over Fibre
Emux offers 4,8 or 16-port E1 multiplexing over fibre
- Protocol transparent E1 extension over fibre
- Cost effective 4, 8 or 16-port E1 units available
- Resilient fibre uplink using SFPs
- External alarm relay port
- Local management port for configuration and diagnostics
- Remote configuration and testing of units across the network
- Comprehensive performance monitoring of both device and line
- Built to European standards
- Remote management using SNMP and Telnet
- Optional -48 volt DC supply
- Alternate product for Probot 3004
The Emux offers extension of multiple E1 ports (120 ohm RJ45 connectors) over a resilient fibre port supported via a pair of SFP connectors, with 4, 8 or 16-port E1 product variants available.
The Emux is completely transparent to E1 protocol and so all E1 voice and data protocols can be supported including PRI ISDN-30, QSIQ, DPNSS, DASS, IP, etc.
The resilient 1+1 fibre interface offers automatic switch-over when a fibre fault occurs.
SFP fibre modules enable many types of fibre interfaces to be supported including multimode, singlemode, CWDM and DWDM.

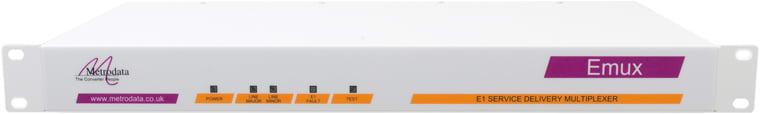

The Emux has several LEDs for displaying current status, plus comprehensive configuration and diagnostics via a menu driven user interface.
Using a dedicated management channel pairs of Emux units can communicate with each other, allowing configuration and status checking of the remote unit.
Remote management can be performed via either SNMP, Telnet or a Web interface.
Whilst the Emux product range uses industry standard user exchangeable SFPs, it is recommended that these are purchased from Metrodata to guarantee their specification and compatibility with each other.

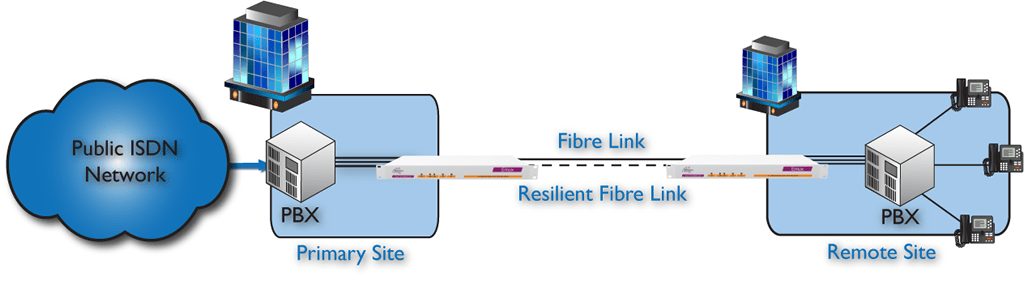

This application shows an Emux transporting up to 16 E1 circuits across a redundant fibre link, although this application will also work perfectly well with a single fibre. The Emux provides transparent E1 extension and so all E1 voice and data protocols can be supported including PRI ISDN-30, QSIQ, DPNSS, DASS, IP, etc. Product variants with 4, 8 or 16 E1 ports are available. The resilient fibre port has dual SFP connectors and so different SFPs can be used to support a variety of fibre types and distances.

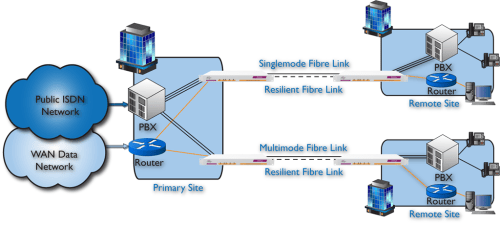

This application shows Emux units being used to extend voice and data WAN services from a campus communications centre (the primary site) to multiple outlying remote sites. As communications infrastructures are merged together to make efficiency savings it is becoming increasingly important to extend these services across the campuses. This network topology is particularly well suited to hospitals, universities and other large campuses, although it can also be used across Metro area networks where suitable fibre resources are available.
Fibre Interface | |
| Port | Resilient SFP fibre port |
| Interface | Dependant on SFPs fitted |
| Multimode SFP 2km 1300nm | Fibre optic loss budget 8.5dB |
| Singlemode SFP 10km 1310nm | Fibre optic loss budget 13dB |
| Singlemode SFP 40km 1310nm | Fibre optic loss budget 20dB |
| Singlemode SFP 80km 1550nm | Fibre optic loss budget 29dB |
E1 Interface | |
| Number of Ports | 4, 8 or 16 |
| Port | G.703 120 ohm balanced |
| Interface | RJ45 (120 ohm) |
| Framing | Unframed |
| Bit Rate | 34.368Mbps +/- 20ppm |
| Barrier | Fully compliant as per EN41003 |
| Cable Lengths | BNC: RG59 = 150m, UR202 = 180m |
Configuration & Management | |
| Type | Menu Driven |
| Access | System console, Telnet, SNMP |
| Interface | V.24, Ethernet 10 BaseT via RJ45 |
| Security | Access by 2-level password |
| System | Non volatile configuration |
| Clock Modes | Internal, Loop |
Status LEDs & Diagnostic Functions | |
| Loopbacks | Local loop, Remote loop |
| BERT | 2^15-1 PRBS |
| Statistics | Per G.821, 15 min, 24 hour totals |
| Line Major Alarm LED | LOS, LOF, SQ (Uplink port) |
| Line Minor Alarm LED | AIS, RAI (Uplink port) |
| E1 LED | E1 Fault |
| Test LED | Test in progress LED, test configured via diagnostics menu |
Power Supply | |
| AC Mains | 100 - 250VAC, 50 - 400Hz, 50mA IEC Connector |
| -48VDC | -36 to -72VDC, 200 - 100mA, Buccaneer connector |
Packaging | |
| Type | 1U 19 inch Rack mount |
| Dimensions | 435 x 213 x 43 mm (W x D x H) |
Environment | |
| Temp | 0 - 50 deg C |
| Humidity | 95% RH, non-condensing |
| Pressure | 86 - 106 KPA |
Compliance & Approvals | |
| Performance | G.703, G.823, CTR12 |
| Safety | EN41003, EN60950 |
| EMC | EMC EN55032 |
| Statistics | G.821, AT&T54016: 15 min, 24 hour totals |
| Management | RFC1213 (MIB2), RFC1495 (Telnet), RFC1157 (SNMP), RFC1406 (DS1/E1) |
| RFC1407 (DS3/E3), RFC1215 (Traps) | |
| Order Code | |||
| Product | AC Mains | DC Power | Dual AC Mains |
| Emux-4 resilient fibre uplink, 4-port E1 RJ45 | 80-12-400 | 80-24-400 | 80-74-400 |
| Emux-8 resilient fibre uplink, 8-port E1 RJ45 | 80-12-401 | 80-24-401 | 80-74-401 |
| Emux-16 resilient fibre uplink, 16-port E1 RJ45 | 80-12-402 | 80-24-402 | 80-74-402 |
| Commonly used SFP transceivers | Order Code | Description |
| 155Mbps Multimode 2km 1300nm | 80-30-021 | Multimode interface fibre optic loss budget 8.5dB |
| 155Mbps Singlemode 10km 1310nm | 80-30-031 | Singlemode interface fibre optic loss budget 13dB |
| 155Mbps Singlemode 40km 1310nm | 80-30-033 | Singlemode interface fibre optic loss budget 20dB |
| 155Mbps Singlemode 80km 1550nm | 80-30-042 | Singlemode interface fibre optic loss budget 29dB |
Need to add more SFP's to your quote?
To see more of Metrodata's SFP offering of Fibre Transceivers, click here.
Many other transceivers are available on request including long haul, 1550nm, CWDM, DWDM and bi-directional.
Whilst the MetroCONNECT product range uses industry standard user exchangeable SFP and SFP+ transceivers, it is recommended that these are purchased from Metrodata to guarantee their specification and compatibility with each other.
If you require another transceiver please contact our sales team with your requirements.
