The integrated 4-port LAN switch supports local switching, thereby removing the need for external switches or hubs in smaller LAN installations.
Ethernet Extender over Serial V35 leased lines
The WC V35 product has now been superceded by the much more flexible and fully manageable MetroCONNECT WCM-Serial product which offers advanced functionality at a cost-effective price point. The WC V35 is no longer available.
WAN-in-a-Can : the "plug and play" way to connect LANs together over the WAN
- Must be used in pairs
- Feature rich LAN extender over V35 leased lines
- Quad port Ethernet switch on subscriber side, with wire speed local switching
- 4 Auto-negotiating subscriber 10/100 BaseT ports, with auto MDI/MDIX switching
- Wire speed filtering of local packets
- Efficient HDLC encapsulation on WAN port
- Easy to install & maintain
- Integral auto-sensing power supply (100-250V AC or -40V DC versions)
- 12-24V DC power supply available on request
- Compact modem style unit, built to European standards
- Rack mounting kits for 2 or 18 units available
- Can also be used to offer asymmetric Ethernet services via V35 satellite modems
- Higher specification MetroCONNECT managed LAN extenders are also available
- WAN-in-a-CAN - overview of product family
- WC1000 - quad 10/100baseT switch with E1 uplink
- WC X.21 - quad 10/100baseT switch with X.21 uplink, superceded by WCM-Serial
- WC3445 - quad 10/100baseT switch with switchable E3 or DS3 uplink, superceded by WCM3100

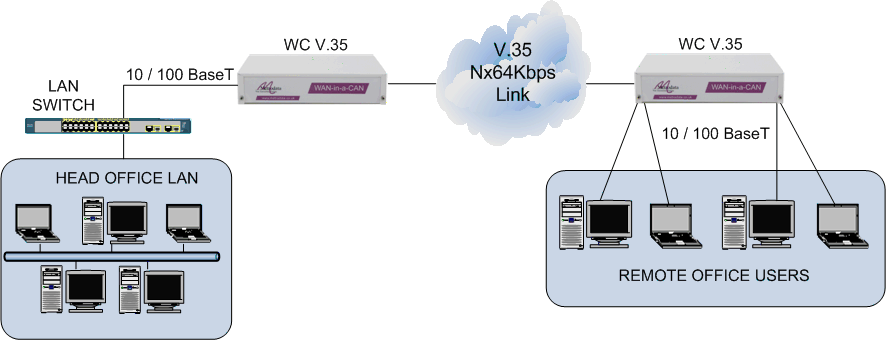

This application shows two LANs connected together using a V35 leased line. As a plug and play Ethernet switching device the WC V35 is a straight forward and cost effective alternative to the use of routers in small and medium sized networks.

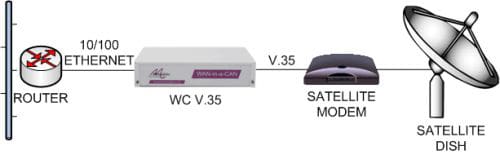

This application shows an Ethernet service delivered via a V35 satellite modem. In this application the WC V35 supports local switching, wire speed filtering and asymmetric data rates up to 20Mbps with an absolute minimum of overhead. This application requires another WC V35 unit at the other end of the satellite link.
Full wire speed switching and filtering between the 10/100 BaseT LAN ports is supported so that only packets destined for the remote site are forwarded over the V35 leased line.
In most installations the WC V35 requires no configuration, and is therefore truly "plug and play". The subscriber ports perform auto-negotiation and support both 10M and 100M operation in full duplex (FD) or half duplex (HD) modes. Manual selection of 100M FD operation enables connection to fixed router ports. Cabling issues are minimised through the use of automatic MDI/MDIX selection on these ports.
The highly efficient HDLC encapsulation of packets ensures that maximum throughput is achieved on the WAN link. Internal packet buffering enables each WC V35 to smooth out bursty traffic without packet loss.
The serial port operates in DTE mode, and requires the attached DCE (e.g. leased line NTU) to supply timing.
The WC V35 can also support asymmetric operation with a V35 satellite modem.
The WC V.35 supports a maximum packet size (MTU) of 1536 bytes which is sufficient to transport double VLAN tagged frames (Q-in-Q).
The WC V35 can easily be rack mounted in either a 1U two unit rack mount kit, in a 6U eighteen unit rack mount kit or are available in a 1U quad box (1U rack mountable unit containing 4 x WC V35 units).
|No. of Ports||4|
|Presentation||10/100 Base TX, RJ45, Auto-MDI/MDI-X|
|LED Support||Link / Activity & Speed|
|Operating Mode||Auto-negotiate for 10/100, Full or Half Duplex|
|Port Filtering Rate||148810 packets/second|
|Port Switching Rate||148810 packets/second|
|Switch Mode||Any to any|
|MAC Address Table||4096 entries|
|Packet Size||64 bytes minimum|
|1536 bytes maximum (older versions support 1522 bytes maximum for auto negotiation mode and 1536 bytes for fixed 100M FD mode)|
WAN Port Specs
|Presentation||34 way female M rack|
|Line Rate||20Mbps (max)|
|Max Packet Rate||38462 at 20Mbps|
|Type||Modem, 1U high without feet, IP30C|
Dimensions W x D x H mm
|Rack mount||202 x 132 x 44 (without feet)|
|Desktop||202 x 132 x 48 (with feet)|
|Temp||0 - 50 deg C|
|Humidity||95% RH, non-condensing|
|Pressure||86 - 106 KPA|
|AC Mains||100-250VAC, 50-60Hz, 60-24mA IEC Connector|
|-40VDC||-40 to -72VDC, 200-100mA|
|AC Mains: 100 - 250 VAC||DC Power: -40 VDC|
|2 Unit Rack mount Kit||80-05-256||80-05-256|
|18 Unit Rack mount Kit||80-05-250||80-05-255|
|Quad WC V35||80-405-546||80-421-546|
Product variants with 12V to 24V DC operation are also available on request.
