Ethernet over 4-port Fractional E1/T1 LAN Module
The Metrodata WCC1400 provides a high performance Ethernet over 4-port Fractional E1/T1 LAN extension function for the MC12000 chassis.
Gigabit Ethernet over/Fibre over E1/T1 Services
- 10/100/1000BaseT Copper Port
- SFP socket supporting:
- 1000Base-X
- 100Base-FX
- Optional:
- Fibre over 4-port Fractional E1/T1
- Copper over 4-port Fractional E1/T1
- Fibre and Copper over 4-port Fractional E1/T1
- Link Loss Forwarding
- Mini Jumbo Frame Support (2048byte)
- 802.3ah OAM Support
- 802.1q VLAN support (pass-through and tag switching)
- 802.1p priority queuing (4 queues)
- RSTP support
- TACACS+ for secure authentication
- “Hot Swap” IO Module
- Store and Forward Media Conversion
- Interoperates with WCM1400 customer site unit
The WCC1400 is an I/O module for use in the MC12000 chassis system.
The WCC1400 occupies a single slot in the MetroCONNECT MC12000 chassis and is fully “Hot Swap” compliant to ease maintenance and the provisioning of new services.
Each Module supports Ethernet over 4-port Fractional E1/T1 LAN Extension and Ethernet Demarcation functionality and supports Copper, Fibre or Copper and Fibre over up to 4-port Fractional E1/T1 operating modes. Link Loss transparency / forwarding is supported.
Optionally, the WCC1400 may be enabled to support OAM link management according to IEEE802.3ah. When OAM is disabled, the WCC1400 operates in a fully transparent LAN Extension mode.
The future WCC1400 development roadmap includes support for IEEE802.1ag and Y.1731 OAM standards.
The SFP port auto senses the SFP type inserted, based on the Module Definition and configures the port for 100BaseFX or 1000Base-X operation.
The WCC1400 supports auto-negotiation, and auto MDI/MDIX cross-over switching on the copper interface.
The WCC1400 supports the transmission of Mini Jumbo frames (2048bytes).

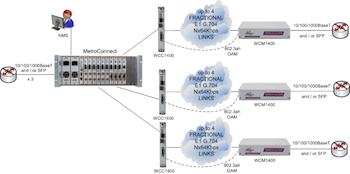

This application shows how WCC1400 modules within a MC12000 chassis can be used to perform an Ethernet over 4-port Fractional E1/T1 LAN Extension function. Electrical connection into the core network potentially improves port density and therefore utilisation levels, but fibre connectivity is also available. The WCM1400 is a standalone version of the WCC1400 module offering Ethernet service demarcation at the customer site.
WAN Port Specs | |
Port | 4-port Fractional E1/T1 conforming to G.703 |
Interface | E1: BNC pair (75 ohm) E1: RJ45 (120 ohm) T1: RJ45 (100 ohm) |
Framing | E1: G.704 (with or without CRC4) or unframed T1: ESF |
Line Coding | E1: HDB3 T1: B8ZS |
Bit Rate | E1: 2.048Mbps +/- 50 ppm T1: 1.544Mbps +/- 50ppm |
1000Base-X Fibre Interface | |
Port | IEEE802.3z 1000BaseX |
Interface | Dual LC connectors |
SFP 1000Base SX | ||
Wavelength | 850nm multimode | |
TX Power | -9.5 to -3dBm | |
Max Rx input power | 0dBm | |
Rx sensitivity | -17 to 0dBm | |
Optical loss budget | 7.5dB (550m) |
SFP 1000Base LX | ||
Wavelength | 1310nm singlemode | |
TX Power | -9.5 to -3dBm | |
Max Rx input power | -3dBm | |
Rx sensitivity | -19 to -3dBm | |
Optical loss budget | 9.5dB (10km) |
10/100/1000BaseT Electrical Interface | |
Port | 10/100/1000BaseT with auto-negotiation |
Interface | RJ45 (Auto Crossover MDI/MDIX) |
Operating modes | Auto Negotiate, 10M, 100M, 1000M, Full Duplex, Half Duplex |
LEDs | Link Activity, Speed |
Compliance & Approvals | |
Safety | EN60950, IEC-60825-1 (Class 1 Laser Eye Safety) |
EMC | EMC EN55032 |
Environment | |
Temperature | 0 - 50 deg C |
Humidity | 0 - 95% RH, non condensing |
Pressure | 86 - 100 KPa |
Storage Temp | -40 to 100 deg C |
Product | Order Code | |
WCC1400 | 80-16-4542-1 |
Commonly used SFP transceivers | Order Code | Description |
10Gbps Multimode 550m 300nm | 80-38-011 | Multimode interface fibre optic loss budget 5.1dB |
10Gbps Singlemode 10km 1310nm | 80-38-031 | Singlemode interface fibre optic loss budget 6.3dB |
1Gbps Multimode 550m 850nm | 80-31-011 | Multimode interface fibre optic loss budget 7.5dB |
1Gbps Singlemode 10km 1310nm | 80-31-031 | Singlemode interface fibre optic loss budget 12dB |
1Gbps Singlemode 80km 1550nm | 80-31-042 | Singlemode interface fibre optic loss budget 24dB |
100Mbps Multimode 2km 1300nm | 80-30-021 | Multimode interface fibre optic loss budget 12dB |
100Mbps Singlemode 10km 1310nm | 80-30-031 | Singlemode interface fibre optic loss budget 17dB |
Need to add more SFP's to your quote?
To see more of Metrodata's SFP offering of Fibre Transceivers, click here.
Many other transceivers are available on request including long haul, 1550nm, CWDM, DWDM and bi-directional.
Whilst the MetroCONNECT product range uses industry standard user exchangeable SFP and SFP+ transceivers, it is recommended that these are purchased from Metrodata to guarantee their specification and compatibility with each other.
If you require another transceiver please contact our sales team with your requirements.
